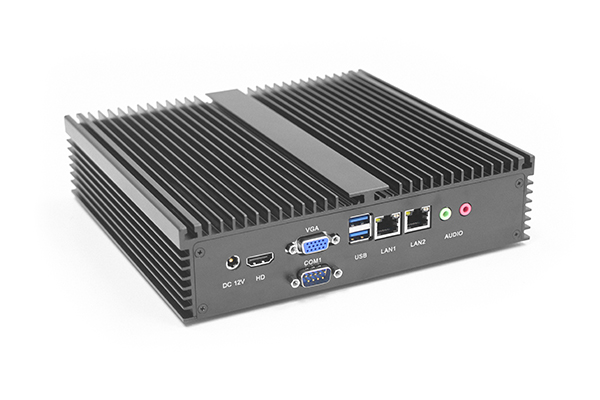

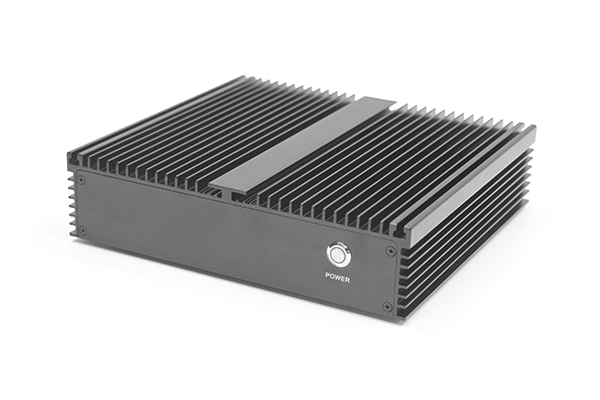

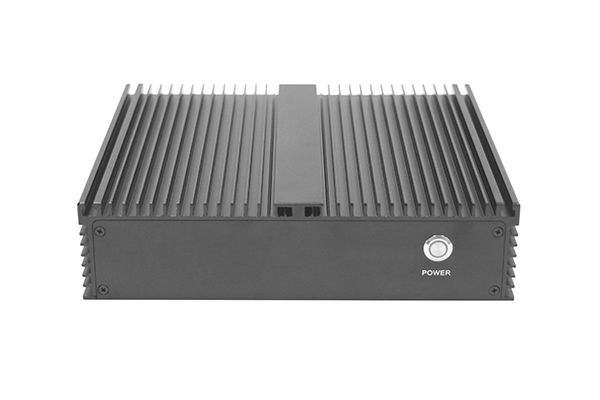

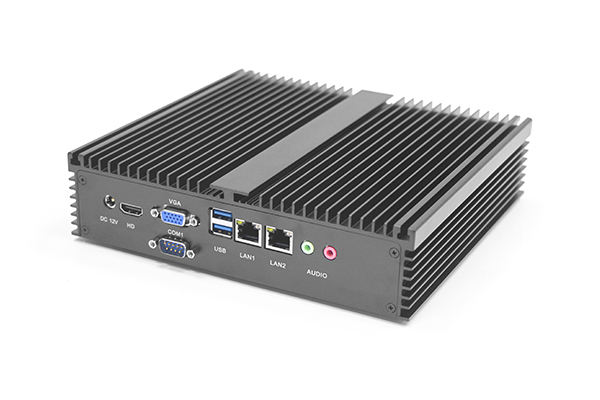

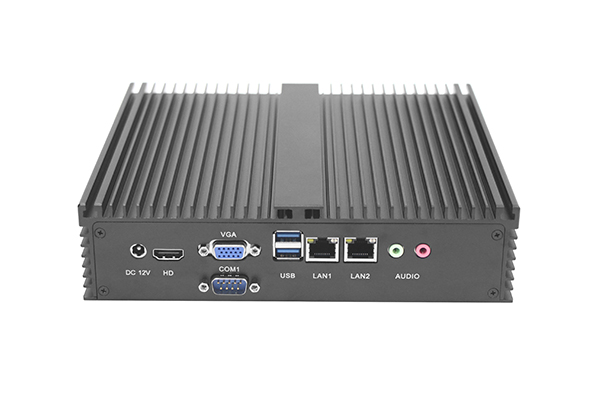

Geshem Intel Baytrail J1800 Fanless Box PC Overview

PC-GS5058A-KA

Intel® Baytrail J1800 Processor

4GB DDR3L+128GB SSD

2*USB3.0, 2*1000M network interface, 1*COM

Get A Quote
Video Spec Download
Benefits
Specification
Dimension

Benefits of Intel Baytrail J1800 Fanless Box PC

  • 9~36V wide voltage module optional

  • 1*HD, 1*VGA

  • Fanless Design

Specification of Intel Baytrail J1800 Fanless Box PC

System Hardware
CPUIntel® Baytrail J1800 2.4GHzPower Supply12V DC input (standard 12V5A power adapter, 9~36V wide voltage module optional)
Memory4GB DDR3L (8GB optional)
StorageMSATA: 128GB, up to 512GB
WatchdogSupport hardware reset function (256 levels, 0~255 seconds)
OS
OSWindows 7/8/10,  Linux
I/O Ports
USB2*USB 3.0AudioMic in, Line out
Serial Port1*RS232VideoVGA, HD
LAN2*1000M network interface

Environment
Vibration Protection5-19Hz/1.0mm amplitude; 19-200Hz/1.0g accelerationOperating Temp.-10℃~60℃ Surface air flow
Shock Protectionacceleration 10g/11msStorage Temp.-20℃~70℃
ReliabilityMTBF≥50000h; MTTR≤0.5hHumidity95% @40℃, no condensation
IP Protection ClassIP54

Mechanical
Dimension (LxWxH)214*200*52mm (without foot pads)MaterialAll metal fanless design
Weight1.76kg/2.6kg(N.W/G.W)Colorblack

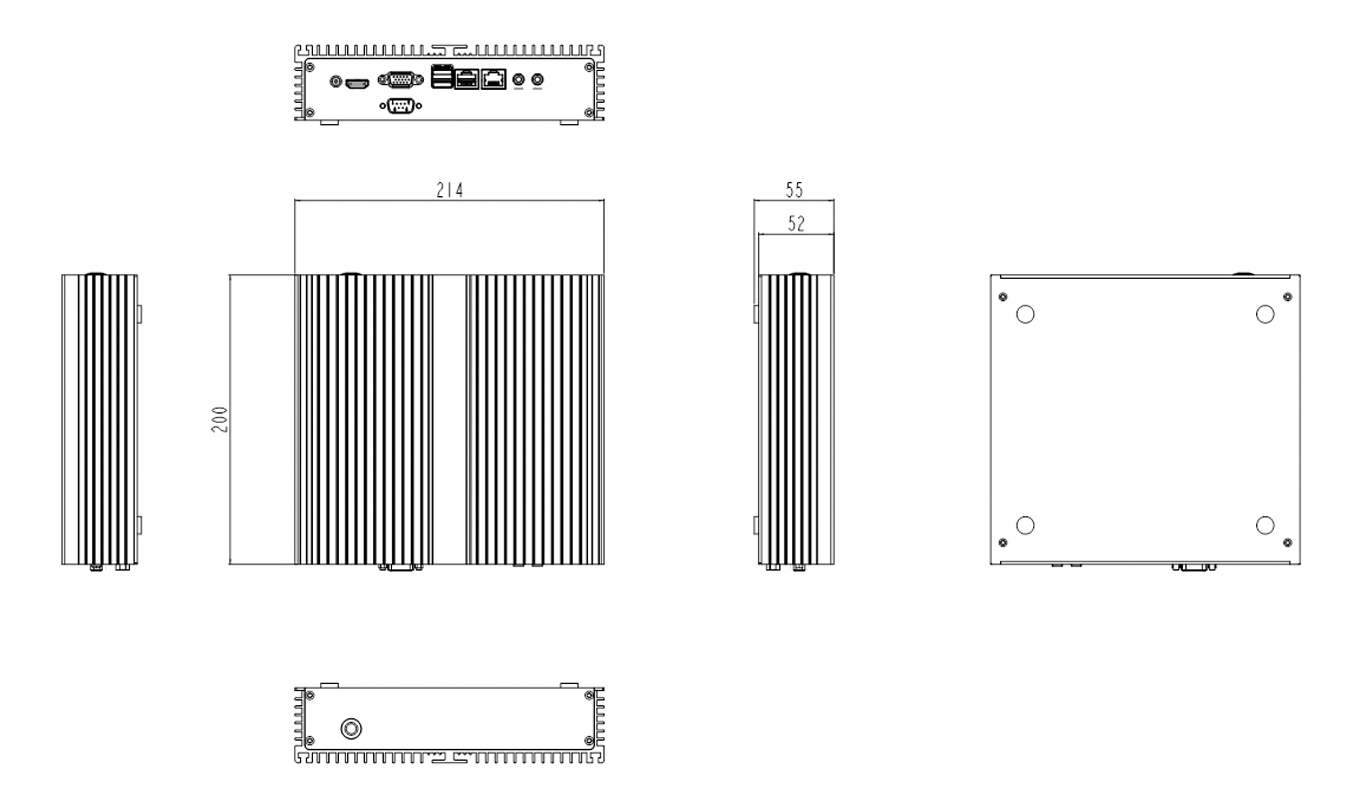

Dimension of Intel Baytrail J1800 Fanless Box PC

Dimension of Intel Baytrail J1800 Fanless Box PC
