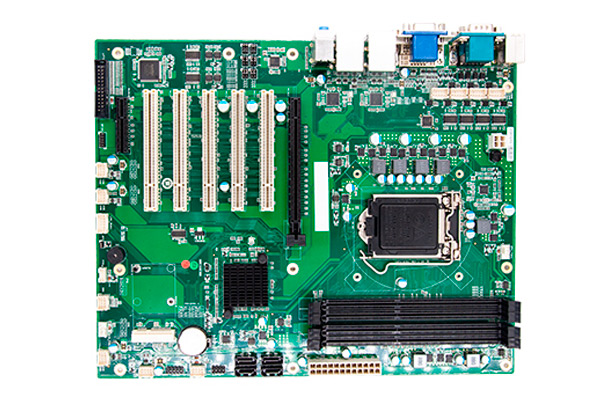

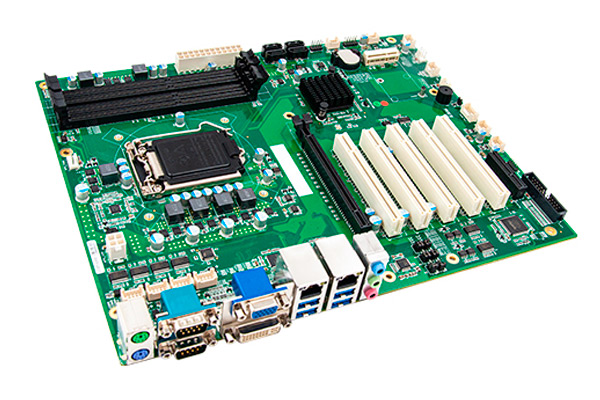

Industrial ATX motherboard based on Intel® B75 chipset supporting LGA1155 Gen 3 i3/i5/i7 CPU, support Pentium®/Celeron® CPU with 1×DVI-D, 1×VGA display, DDR3 1333/1600MHz DIMM, dual Gigabit ethernet, and LPT, USB and COM ports.
■ Support LGA1155 Gen 3 i3/i5/i7 CPU, Pentium®/Celeron® CPU
■ 4×240PIN DDR3 1333/1600MHz DIMM memory slots, single 8GB, max 32GB
■ Provide 4×SATA interface and 1 x mSATA slot
■ Adopt high-density PCB laminate structure to fully ensure signal shielding and improve system stability
■ Interface anti-static design, effectively protect the core components of the system and enhance system reliability
■ Snap-on interface design improves interface connection reliability and facilitates system maintenance
■ Adopt B75 chipset, with native PCI bus resources to ensure PCI bus compatibility
System Hardware | |
CPU | Support LGA1155 Gen 3 i3/i5/i7 CPU, support Pentium®/Celeron® CPU |
Memory | 4×240PIN DDR3 1333/1600MHz DIMM memory slots, single 8GB, max 32GB |
Storage | Provide 4×SATA interface and 1 x mSATA slot |
Chipset | Intel® B75 |
Watchdog | 255 levels, programmable sec/min, support timeout interrupt or system reset |
Power Supply | Adopt ATX power supply, support S0, S1, S4, S5 |
OS | |
OS | Ubuntu11.04, Red Hat® Enterprise Linux® 32, 64, Windows XP, 7 SP1, 8, 8.1, 10, WES 7 |
I/O Interface | |
Display Interface | Support 1×DVI-D, 1×VGA, support single display, dual display duplication, dual display expansion output; VGA supports maximum resolution 2048×1536@75HZ, 32bit color depth, DVI supports maximum resolution 1920×1200@60HZ |
Expansion Bus | Provide 1×PCIe x16, support PCIe 3.0 specification; Provide 1×PCIe x4, support PCIe 2.0 specification; Provide 1×mSATA, can be configured as Mini-PCIe; Provide 4/5×32-bit native PCI, support PCI Rev2.3 standard |
USB | 8×USB2.0 ports, 4×USB3.0 ports are provided on the rear panel |
COM | 6×COM, expandable to 10×COM, of which COM1/2 supports RS-232/422/485 mode selection |
PS/2 | 1×PS/2 keyboard port, 1×PS/2 mouse port |
GPIO | 1×8-bit GPIO |
LPT | 1×LPT interface |
Ethernet | Provide 2×Intel® 10/100/1000Mbps network interface |
Audio | Adopt HDA standard, support rear panel Mic-in, Line-in, Line-out |
Environment | |
Operating Temp. | -10℃~60℃; 5%~95% (non-condensing state) |
Storage Temp. | -20℃~80℃, 5%~95% (non-condensing state) |
Mechanical | |

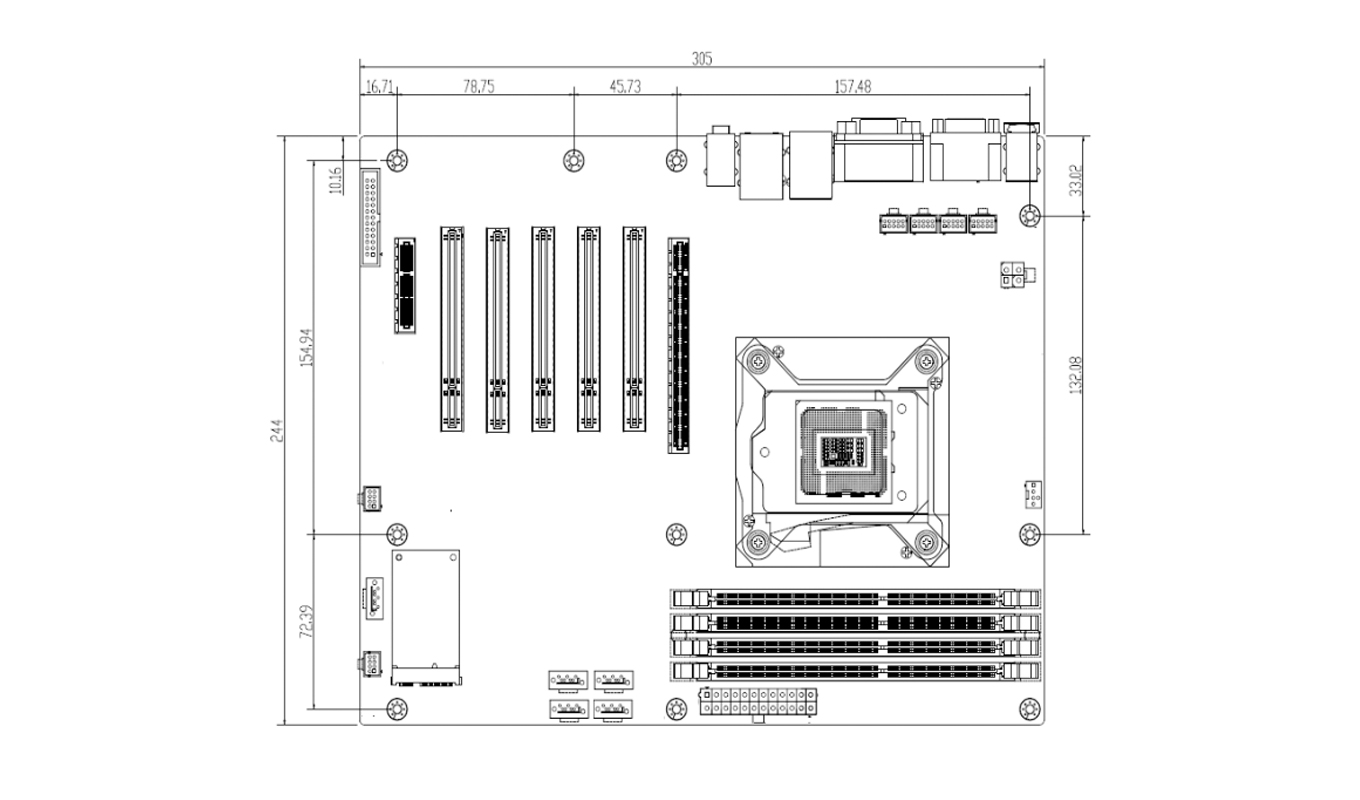

Dimension (L x W) | 305mm*244mm |
Ordering Information | |
ATX-GSB75K | ATX industrial motherboard/Intel® B75 platform/support LGA1155 Gen 3 i3/i5/i7/Pentium®/Celeron® CPU/2×DDR3 DIMM, maximum support 16GB memory/VGA+DVI dual display/4×SATA/dual Intel® Gigabit Ethernet port/ 8×USB2.0 /4×USB3.0 /6×COM (COM1/2 supports RS-232/422/485) /1×LPT/PS2 mouse/keyboard/HD Audio/1×8-bit GPIO/4×PCI /1×PCIe x4/1×PCIe x16/1×mSATA, can be configured as Mini-PCIe/standard ATX power supply |
