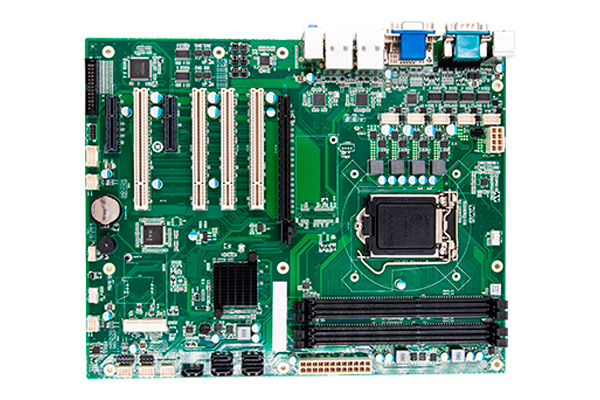

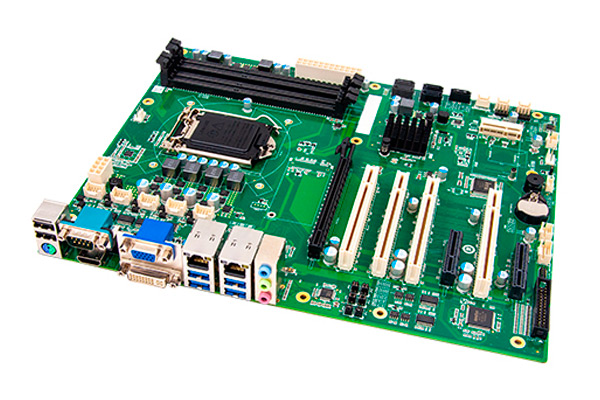

Industrial ATX motherboard based on Intel® B85 chipset supporting Intel LGA1150 Gen4 i3/i5/i7 CPU, supports Pentium®/Celeron® CPU with1×DVI-D, 1×VGA, 1×HD display.
DDR3 1333/1600MHz DIMM, dual Gigabit ethernet, and LPT, USB and COM ports.
Intel® B85 supports Intel LGA1150 Gen4 i3/i5/i7 CPU, Pentium®/Celeron® CPU
4×240PIN DDR3 1333/1600MHz DIMM memory slots, single 8GB, max 32GB
Provide 5 x SATA ports (4 x SATA3.0+1 x SATA2.0), 1 x optional mSATA/Mini-PCIe port
Adopt high-density PCB laminate structure to fully ensure signal shielding and improve system stability
Interface anti-static design, effectively protect the core components of the system and enhance system reliability
Snap-on interface design improves interface connection reliability and facilitates system maintenance
Optimized expansion slot layout to adapt to expansion applications in different industries
System Hardware | |
CPU | Supports Intel LGA1150 Gen4 i3/i5/i7 CPU, supports Pentium®/Celeron® CPU |
Memory | 4×240PIN DDR3 1333/1600MHz DIMM memory slots, single 8GB, max 32GB |
Storage | Provide 5 x SATA ports (4 x SATA3.0+1 x SATA2.0), 1 x optional mSATA/Mini-PCIe port |
Chipset | Intel® B85 |
Watchdog | 255 levels, programmable sec/min, support timeout interrupt or system reset |
Power Supply | Adopt ATX power supply, support S0, S1, S4, S5 |
OS | |
OS | Ubuntu11.04 , Red Hat® Enterprise Linux® 32, 64, Windows XP, 7 SP1, 8, 8.1, 10, WES 7 |
I/O Interface | |
Display Interface | 1×DVI-D, 1×VGA, 1×HD, support independent dual display and triple display output; VGA supports maximum resolution 1920×2000@60HZ, 32bit color depth, DVI supports maximum resolution 1920×1200@60HZ |
Expansion Bus | 1×PCIe x16 slot, support PCIe 3.0 specification; 2 x PCIe x4 slots (one of which supports PCIe x1 signals), supports PCIe 2.0 specifications; 4 x 32-bit PCI slots, supports PCI Rev2.3 standard |
USB | 8×USB2.0 ports, 4×USB3.0 ports are provided on the rear panel |
COM | 6×COM, of which COM1/COM2 supports RS-232/RS422/RS485 mode selection |
PS/2 | 1×PS/2 keyboard, mouse interface |
GPIO | 1×8 digital I/O interface |
LPT | 1×LPT interface |
Ethernet | Provide 2×10/100/1000Mbps network interface |
Audio | Adopt HDA standard, support rear panel Mic-in, Line-in, Line-out |
Environment | |
Operating Temp. | -10℃~60℃; 5%~95% (non-condensing state) |
Storage Temp. | -20℃~80℃, 5%~95% (non-condensing state) |
Mechanical | |
Dimension (L x W) | 305mm*244mm |
Ordering Information | |
ATX-GSB85K | ATX Industrial Motherboard/Intel® B85 Platform/Support Gen4 i3/i5/i7 CPU, Support Pentium® /Celeron® /4×DDR3 DIMM Maximum Support 32GB Memory/VGA+DVI+HD Triple Display/5×SATA/Dual Intel® Thousand Mega Ethernet port/8×USB2.0/4×USB3.0/6×COM (COM1&2 support 232/422/485) /1×LPT/PS2 mouse and keyboard interface/HD Audio/1×8bit GPIO/4×standard PCI Slot/1×PCIe x1/ 1×PCIe x4/1×PCIe x16/1×mSATA slot can be configured as Mini-PCIe/standard ATX power supply |
