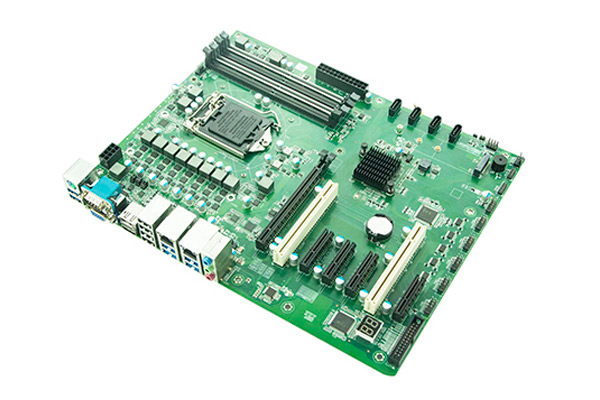

Geshem ATX-GSB560K Industrial ATX Motherboard

ATX-GSB560K

Industrial ATX motherboard based on Intel® B560 Supporting10th/11th generation i3/i5/i7/i9 /Pentium®/Celeron®/Xeon™ W-12xxx in Intel® LGA1200 package with1×VGA, 1×HD, 1×DP, DDR4 U-DIMM, dual Gigabit ethernet, and LPT, USB and COM ports.

Get A Quote
Spec Download
Benefits
Specification
Dimension

Benefits of ATX-GSB560K Industrial ATX Motherboard

  • Intel® B560 supports 10th/11th generation i3/i5/i7/i9 /Pentium®/Celeron®/Xeon™ W-12xxx in Intel® LGA1200 package

  • Provides 4 DDR4 U-DIMM memory slots, MAX 128GB

  • Provides 4 SATA ports, one M.2 port

  • Adopt high-density PCB laminate structure to fully ensure signal shielding and improve system stability

  • Snap-on interface design improves interface connection reliability and facilitates system maintenance

  • Provide on-board encryption scheme (optional), which can realize software and hardware binding or key data storage and encryption

  • Using Intel network chip to ensure high-speed and stable data transmission

Specification of ATX-GSB560K Industrial ATX Motherboard

System Hardware
CPUSupports 10th/11th generation i3/i5/i7/i9 /Pentium®/Celeron®/Xeon™ W-12xxx in Intel® LGA1200 package
MemoryProvides 4 DDR4 U-DIMM memory slots, MAX 128GB
StorageProvides 4 SATA ports, one M.2 port
ChipsetIntel® B560
Watchdog255 levels, programmable sec/min, support timeout interrupt or system reset
Power Supp lyAdopt ATX power supply, support S0, S1, S4, S5
OS
OSUbuntu15.1, Red Hat® Enterprise Linux® 32, 64, Win7 SP1, 8.1, 10, WES 7
I/O Interface
Display Interface1×VGA, 1×HD, 1×DP
Expansion BusProvide PCIe x16*1;
PCIe x4*4 (10th generation CPU, one less PCIe x4);
PCI*2
USB8×USB2.0 ports, 6×USB3.0 ports are provided on the rear panel
COM6×COM, expandable to 10 RS232, among which COM1/COM2 supports RS-232/RS422/RS485 mode selection
PS/21×PS/2 keyboard/mouse interface
GPIO1×8 digital I/O interface
LPT1×LPT interface;
EthernetProvide 2×10/100/1000Mbps network interface
AudioAdopt HDA standard, support rear panel Mic-in, Line-in, Line-out
Environment
Operating Temp.-10℃~60℃; 5%~95% (non-condensing state)
Storage Temp.-20℃~80℃, 5%~95% (non-condensing state)
Mechanical
Dimension (L x W)305mm*244mm
Ordering Information
ATX-GSB560KATX Structure Board/Intel® B560 Chipset/10th/11th Generation i3/i5/i7/i9/Pentium®/Celeron®/Xeon™ W-12xxx /4×DDR4 DIMM memory slots supporting Intel® LGA1200 package, total Support 128GB memory/1 VGA/1 HD/1 DP/2×1000Mbps network interface/provide 4 SATA interfaces, one M.2 interface/6×COM, can be expanded to 10 RS232, of which COM1/COM2 support RS-232/RS422/RS485 mode selection/8×USB2.0 ports, the rear panel provides 6×USB3.0 ports/1×PS/2 keyboard/mouse ports/1×8 digital I/O ports/1×LPT Interface/Provide PCIe x16*1, PCIe x4*4 (10th generation CPU, one less PCIe x4), PCI *2/standard ATX power supply

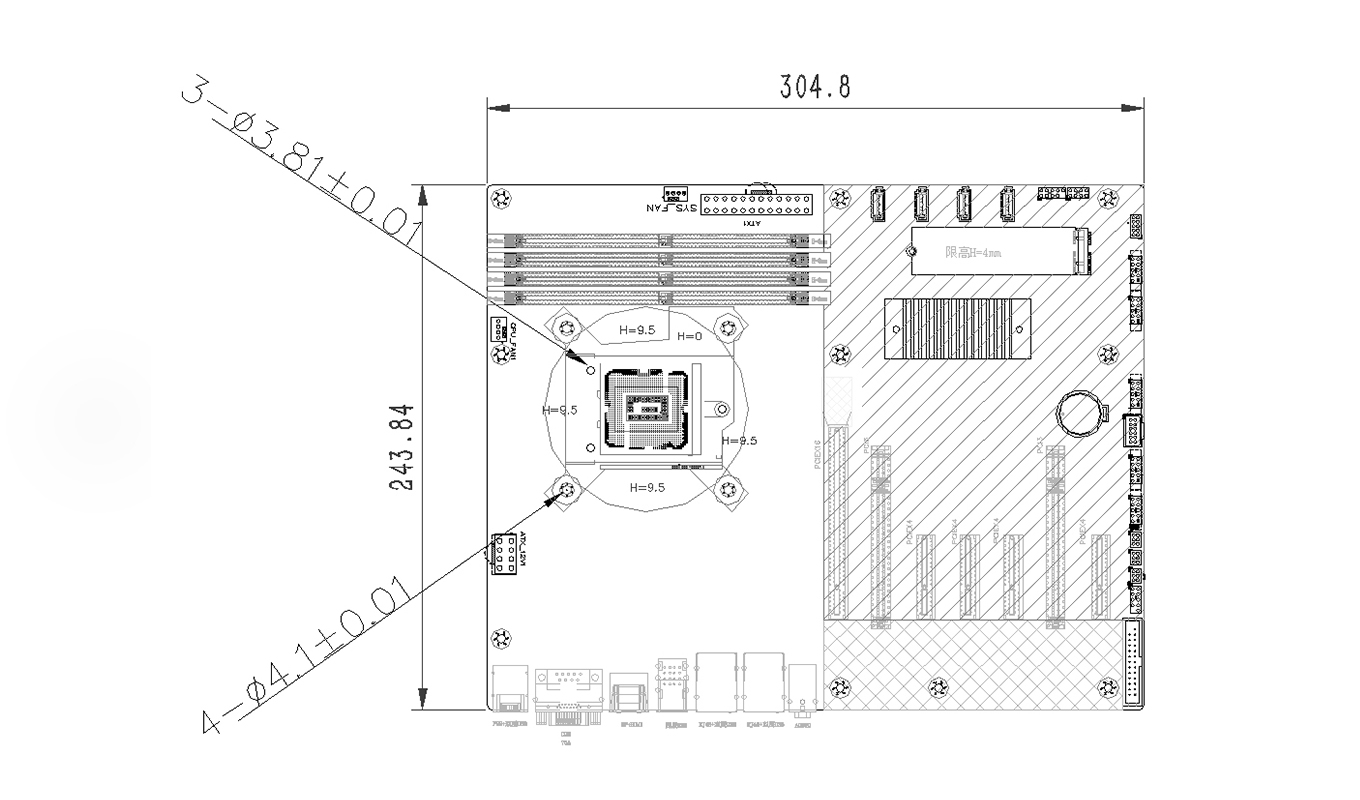

Dimension of ATX-GSB560K Industrial ATX Motherboard
