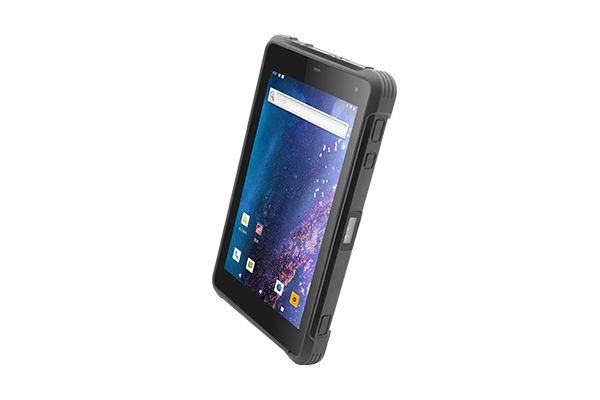

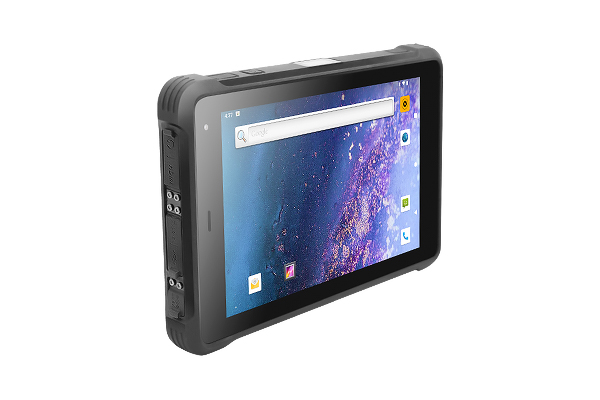

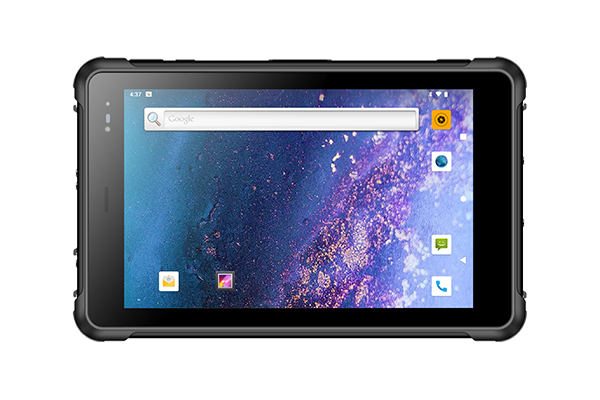

8 Inch MTK 6771 Rugged Tablet

TPC-GS0881T

8" WXGA (1280 x 800) 500/1000 nits TFT LCD;

MTK MT6771 Octa Core 2.0GHz;

WiFi 802.11a/b/g/n/ac, Bluetooth 4.0, LTE;

Optional 1D/2D Barcode Scanner & NFC/RFID;

Up to 3 GNSS, GPS/BD/GLonass;

Optional AG+AF+Wet Hand/Glove;

9800mAh large-capacity battery can meet long-time.

Get A Quote
Video Spec Download
Benefits
Specification
Dimension
Accessories

Benefits of 8 Inch MTK 6771Rugged Tablet

  • 8'' WXGA(1280 x 800)500/1000 nits TFT LCD

  • MTK MT6771 2.0GHz

  • WiFi 802.11a/b/g/n/ac, Bluetooth 4.0, LTE

  • 5MP Front and 13MP Rear Camera

  • Optional 1D/2D Barcode Scanner, NFC/RFID, Fingerprint Recognition

  • Up to 3 GNSS, GPS/BD/GLonass

  • Corning Gorilla Glass III, Optional AG+AF+Wet Hand/Glove

  • 9800mAh large-capacity battery

  • IP67 Compliant, Drop 1.2m

  • Android 10




Specification of 8 Inch MTK 6771Rugged Tablet

System Hardware
CPUMTK MT6771 Octa-core 2.0GHz
Memory4GB
Storage64GB
Camera5MP front camera with fixed focus
13MP rear camera with autofocus and LED light
SpeakerSingle speaker, 1.2W/8Ω
MICWaterproof MIC
EarpieceWaterproof earpiece
ButtonThe power button, Volume +/-,
1*Customize function key
1*Barcode scanner shortcut key
LED IndicatorCharging indicator
SensorG­sensor, Gyroscope, E­compass, Distance sensor, Motor, Light sensor
Display
LCD Type8" TFT-LCD
Max. Resolution1280*800
Luminance500 cd/m2, Optional 1000 cd/m2
Touchscreen5-Points projected capacitive touchscreen, up to 10-points
Optional AG+AF or AG+AF+Wet Hand/Glove
Cover GlassCorning Gorilla Glass III, hardness 7H, light transmittance 85%
OS
OSAndroid 10
I/O Interface

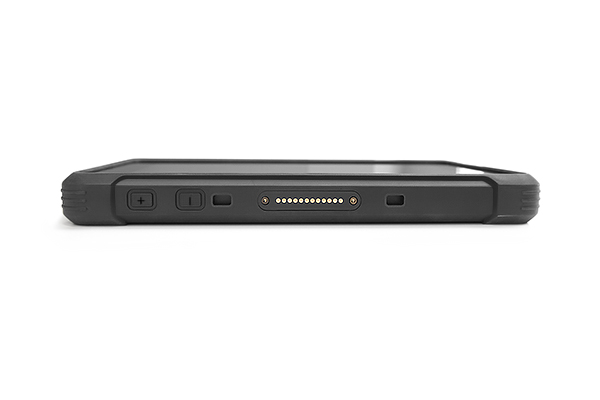

POGO PIN1*POGO PIN (USB+Charging)
USB1*USB Type C (USB OTG+Charging)
1*USB 2.0,TYPE A
Video1*mini HD
Audio3.5mm Headphone Jack
DC Jack1*DC Jack
SIM Card Slot1*Micro SIM Card Slot
TF Card Slot1*TF Card Slot, up to 256GB
Aviation PlugExpansion 1*CAN
Communication
WIFI802.11a/b/g/n/ac, 2.4G+5.8G Dual-band WIFI
BluetoothBluetooth 4.0 (BLE) class1, Transmission range: 10m
GNSSMT6631 GPS+BD+GLonass
WWANGSM: B2/B3/B5/B8
WCDMA: B1/B2/B5/B8
TD-SCDMA:B38/B39/B40/B41
CDMA2000
LTE-FDD: B1/B2/B3/B4/B5/B7/B8
LTE-TDD: B38/B39/B40/B41
Extended Functions

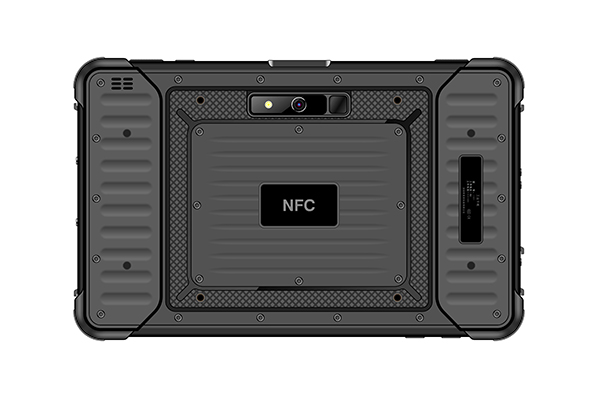

NFC/RFIDOptional NFC/HF-RFID/UHF-RFID, 3 choose 1
Barcode ScannerOptional 1D/2D barcode scanner, 2 choose 1
Power
Power Input5V DC Input, 5V/3A power adapter
Optional 5~24V DC power input, no built-in battery power supply
Battery9800mAh, 3.8V Li-Ion battery
Battery Life10 hours (Play 1080P video under LCD 50% backlight)
Environment
Drop1.2m free fall to the wooden floor
Operating Temp.-10℃~50℃
Storage Temp.-30℃~70℃
IP RatingIP67
Certificate
CertificateCE, RHOS, UN38.3, MSDS
Mechanical
Dimension (W x H x D)256.6*145.7*22mm
Optional UHF RFID module, the thickness increases 9.5mm
Weight0.80kg
ColorBlack
Accessory
AccessoryHand strap, Type-C OTG cable, 5V/3A power adapter
Optional AccessoryDocking, Vehicle bracket, Vehicle charger, Passive touch pen, Type-C data cable, Vehicle charging bracket


Dimension of 8 Inch MTK 6771Rugged Tablet

Deminsion of 8 Inch MTK 6771Rugged Tablet

Accessories of 8 Inch MTK 6771Rugged Tablet

Packing List

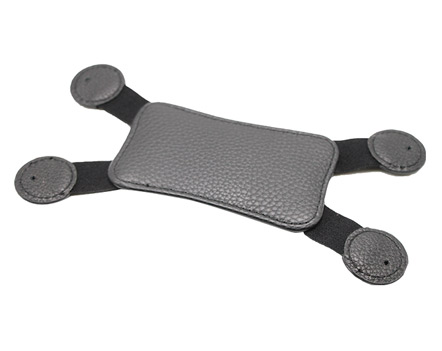

Hand Strap of 8 Rugged Tablet
Hand Strap of 8 Rugged Tablet

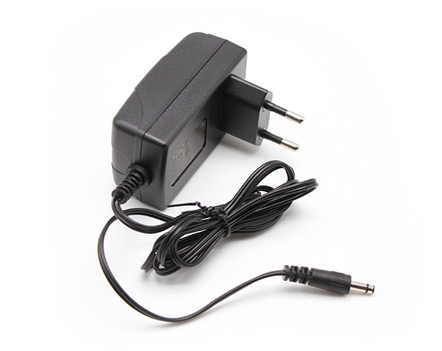

Power Adapter of 8 Rugged Tablet
Power Adapter of 8 Rugged Tablet

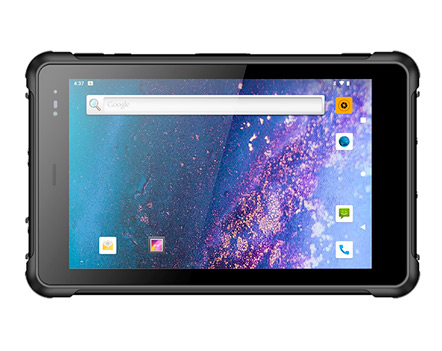

Device of 8 Rugged Tablet
Device of 8 Rugged Tablet
Optional Accessories

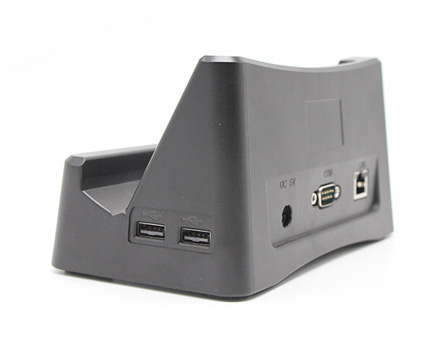

Docking of 8 Rugged Tablet
Docking of 8 Rugged Tablet

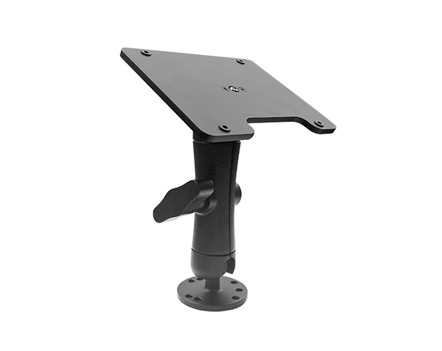

Vasa Stand of 8 Rugged Tablet
Vasa Stand of 8 Rugged Tablet

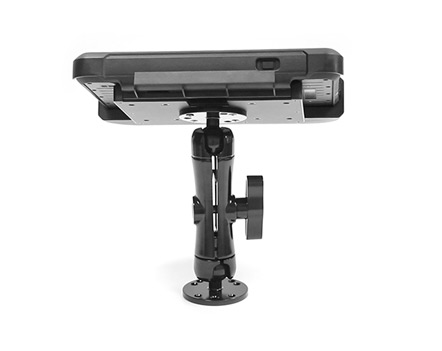

Vehicle Charging Bracket of 8 Rugged Tablet
Vehicle Charging Bracket of 8 Rugged Tablet
