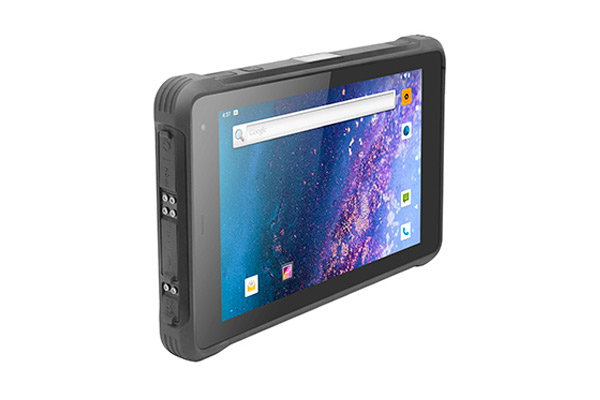

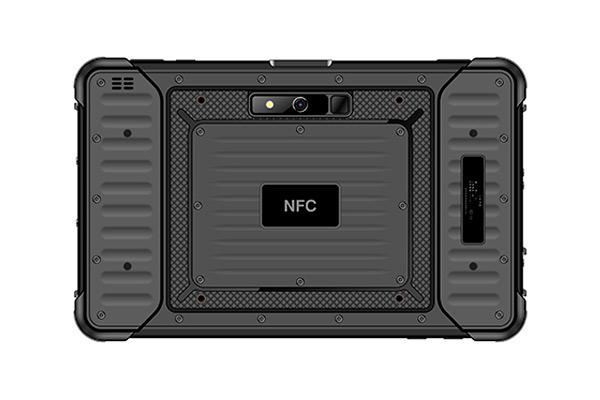

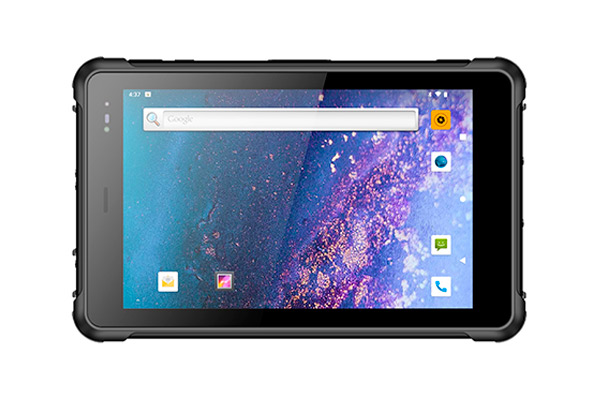

Geshem 8 Inch MTK 6769 Rugged Tablet

TPC-GS0882T

8'' WXGA(800 x 1280)500/1000 nits TFT LCD.

MT6769, 2 ARM® Cortex-A75 2.0 GHz + 6 ARM® Cortex-A55 1.8 GHz.

WIFI5 802.11(a/b/g/n/ac), Bluetooth 5.0.

Optional 1D/2D Barcode Scanner、NFC/RFID.

Get A Quote
Video Spec Download
Benefits
Specification
Dimension

Benefits of 8 Inch MTK 6769 Rugged Tablet

  • industrial android tablet support GPS/BeiDou/GLonass/Galileo.

  • Corning Gorilla Glass III, Optional AG+AF+Wet Hand/Glove.

  • 9800mAh large-capacity battery.

  • Standard IP65, optional IP67 Compliant, Drop 1.2m.

  • Android 12.


 For more information, please inquiry Geshem industrial pc manufacturer

Specification of 8 Inch MTK 6769 Rugged Tablet

System Hardware
CPUMT6769,2 ARM® Cortex-A75 2.0 GHz + 6 ARM® Cortex-A55 1.8 GHz
RAM+Storage6GB+64GB
CameraFront 5MP fixed focus camera, rear 13MP autofocus camera
Flash LightSupport
SpeakerSingle speaker, 1.2W/8Ω aluminum film, Standard IP65, optional IP67 waterproof speaker
MICStandard IP65, optional IP67 waterproof microphone
EarpieceStandard IP65, optional IP67 waterproof earpiece
ButtonPower button, Volume +/-, 1*Customize function key, 1*Barcode scanner shortcut key
LED IndicatorCharging indicator
SensorG­sensor, Gyroscope, geomagnetism, Distance sensor, Motor, Light sensor, air pressure
Display
LCD Type8" TFT-LCD
Max. Resoltuion800*1280
Cover GlassCorning Gorilla Glass III, hardness 7H, light transmittance 85%
Luminance500 cd/m2, Optional 1000 cd/m2
Touchscreen5-Points projected capacitive touchscreen, Optional AG+AF+Wet Hand/Glove
OS
OSAndroid 12
I/O Interface

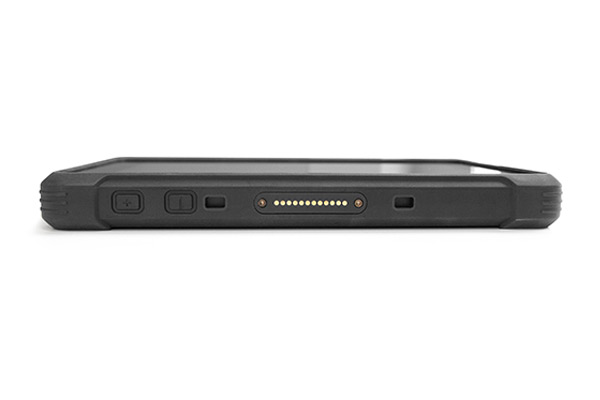

POGO PIN1*POGO PIN(USB+Charging)
USB1*USB Type C(USB OTG+Charging), 1*USB 2.0, Type A
DC Jack1*DC Jack
Audio3.5mm Headphone Jack
TF Card Slot1*TF Card Slot (up to 128GB)
SIM Card Slot1*Micro SIM Card Slot
Aviation Plug1-way CAN interface can be customized
Network Communication
4GGSM: B2/B3/B5/B8
TD-SCDMA: B34/B39
WCDMA: B1/B2/B5/B8
CDMA: BC0
TDD: B34/B38/B39/B40/B41
FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28A/B28B/B66
WIFIWIFI5 802.11(a/b/g/n/ac)
BluetoothBluetooth 5.0
GNSSGPS/BeiDou/GLonass/Galileo
Extended Functions
NFC/RFIDOptional NFC/HF-RFID/UHF-RFID, 3 choose 1
Barcode ScannerOptional 1D/2D barcode scanner, 2 choose 1
Power
Power Input5V/3A, Level 6 Energy Efficiency DC Interface Adapter
Customizable: power input (DC 5~24V, no battery)
Battery9800mAh, 3.8V Li-Ion battery
Battery Life10 hours (Play 1080P video under LCD 50% backlight)
Environment
Drop1.2m free fall to the wooden floor
IP RatingStandard IP65, optional IP67
Operating Temp.-10℃~50℃
Storage Temp.-30℃~70℃
Certificate
CertificateCE, ROHS, UN38.3, MSDS
Mechanical
Dimension (WxHxD)227*142.4*22.9mm
Optional UHF RFID module, thickness increases 9.5mm
Weight0.80kg
ColorBlack
Accessory
AccessoryHand strap, Type-C OTG cable, 5V/3A Level 6 Energy Efficiency DC Interface Adapter
Optional AccessoryDocking, Vehicle bracket, Vehicle charger, Passive touch pen, Type-C data cable, Vehicle charging bracket

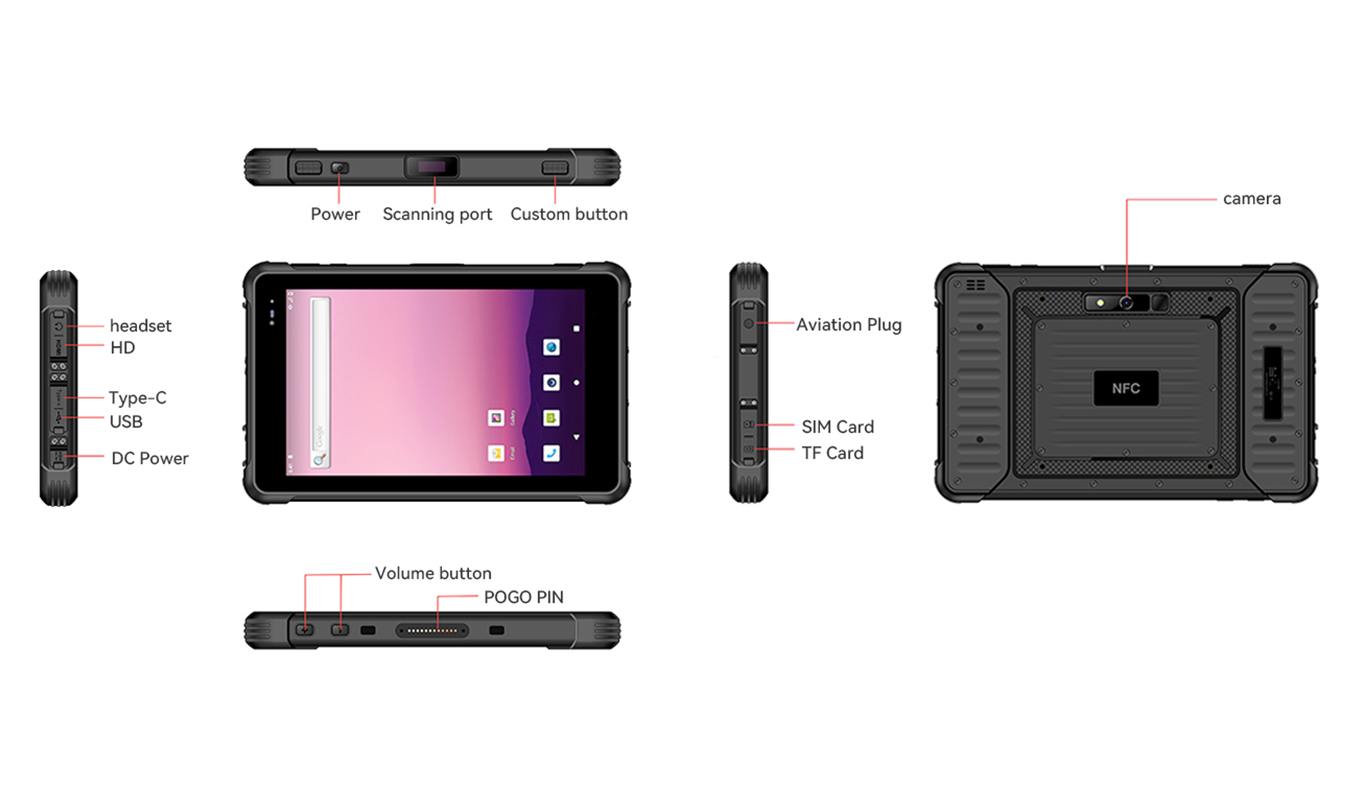

Dimension of 8 Inch MTK 6769 Rugged Tablet

Dimension of 8 Inch MTK 6769 Rugged Tablet
