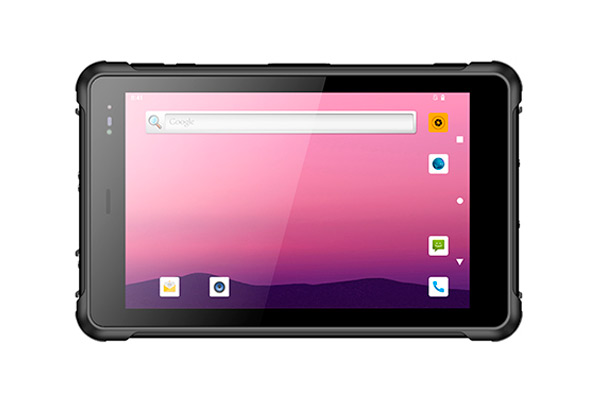

8'' WXGA(800 x 1280)500/1000 nits TFT LCD.
MT6877, 2 ARM® Cortex-A78 2.4 GHz + 6 ARM® Cortex-A55 2.0 GHz.
WIFI6 802.11(a/b/g/n/ac/ax), Bluetooth 5.2.
Optional 1D/2D Barcode Scanner, NFC/RFID.
Support GPS/BeiDou/GLonass/Galileo.
Corning Gorilla Glass III, Optional AG+AF+Wet Hand/Glove touch.
9800mAh large-capacity battery.
IP67 Compliant, Drop 1.2m.
Android 12.
| System Hardware | |
| CPU | MT6877, 2 ARM® Cortex-A78 2.4 GHz + 6 ARM® Cortex-A55 2.0 GHz |
| RAM+Storage | 6GB+128GB |
| Camera | Front 5MP fixed focus camera, rear 13MP autofocus camera |
| Flash Light | Support |
| Speaker | Single speaker, 1.2W/8Ω aluminum film, IP67 waterproof speaker |
| MIC | IP67 waterproof microphone |
| Earpiece | IP67 waterproof earpiece |
| Button | Power button, Volume +/-, 1*Customize function key,1*Barcode scanner shortcut key |
| LED Indicator | Charging indicator |
| Sensor | Gsensor, Gyroscope, geomagnetism, Distance sensor, Motor, Light sensor, air pressure |
| Display | |
| LCD Type | 8" TFT-LCD |
| Max. Resoltuion | 800*1280 |
| Cover Glass | Corning Gorilla Glass III, hardness 7H, light transmittance 85% |
| Luminance | 500 cd/m2, Optional 1000 cd/m2 |
| Touchscreen | 5-Points projected capacitive touchscreen, Optional AG+AF+Wet Hand/Glove |
| OS | |
| OS | Android 12 |

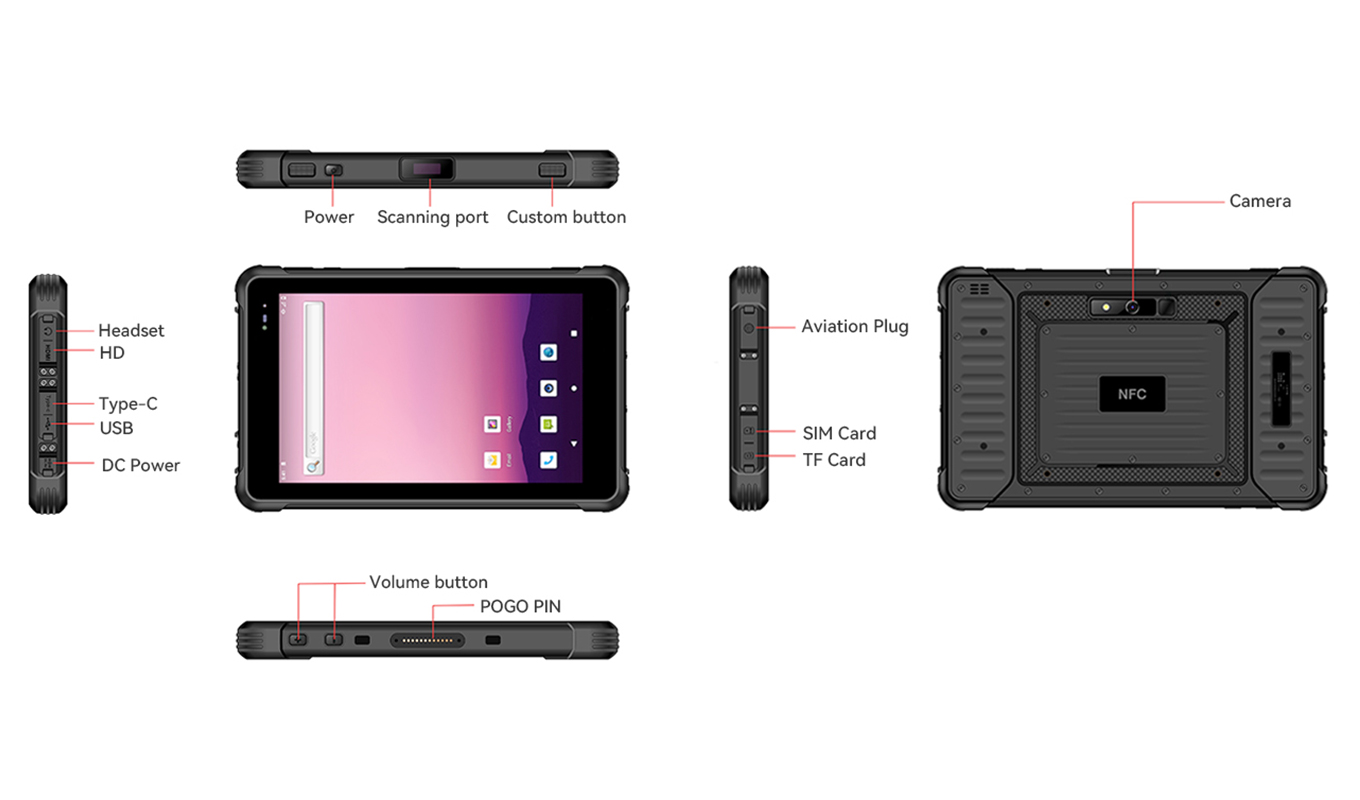

| I/O Interface | |

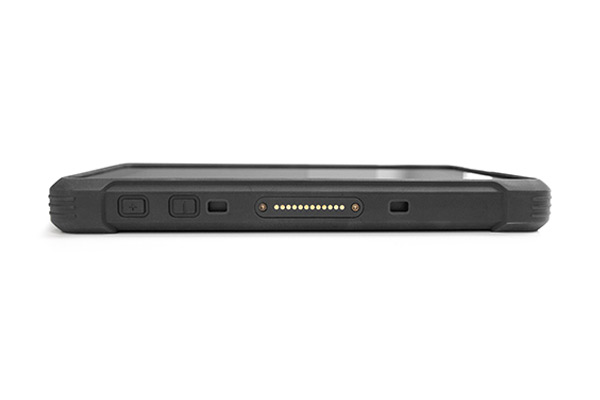

| POGO PIN | 1*POGO PIN(USB+Charging) |
| USB | 1*USB Type C(USB OTG+Charging) |
| 1*USB 2.0, Type A | |
| DC Jack | 1*DC Jack |
| Audio | 3.5mm Headphone Jack |
| TF Card Slot | 1*TF Card Slot (up to 128GB) |
| SIM Card Slot | 1*Micro SIM Card Slot |
| Aviation Plug | - |
| Network Communication | |
| 5G | GSM: B2/B3/B5/B8, TD-SCDMA: B34/B39 |
| WCDMA: B1/B2/B5/B8, CDMA: BC0 | |
| TDD: B34/B38/B39/B40/B41 | |
| FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28A/B28B | |
| 5G:N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79 | |
| WIFI | WIFI6 802.11(a/b/g/n/ac/ax) |
| Bluetooth | Bluetooth 5.2 |
| GNSS | GPS/BeiDou/GLonass/Galileo |
| Extended Functions | |
| NFC/RFID | Optional NFC/HF-RFID/UHF-RFID, 3 choose 1 |
| Barcode Scanner | Optional 1D/2D barcode scanner, 2 choose 1 |
| Power | |
| Power Input | 5V/3A, Level 6 Energy Efficiency DC Interface Adapter |
| Customizable: power input (DC 5～24V, no battery) | |
| Battery | 9800mAh, 3.8V Li-Ion battery |
| Battery Life | 10 hours (Play 1080P video under LCD 50% backlight) |
| Environment | |
| Drop | 1.2m free fall to the wooden floor |
| IP Rating | IP67 |
| Operating Temp. | -10℃～50℃ |
| Storage Temp. | -30℃～70℃ |
| Certificate | |
| Certificate | CE, ROHS, UN38.3, MSDS |
| Mechanical | |
| Dimension (WxHxD) | 227*142.4*22.9mm |
| Optional UHF RFID module, thickness increases 9.5mm | |
| Weight | 0.80kg |
| Color | Black |
| Accessory | |
| Accessory | Hand strap, Type-C OTG cable, 5V/3A Level 6 Energy Efficiency DC Interface Adapter |
| Optional Accessory | Docking, Vehicle bracket, Vehicle charger, Passive touch pen, Type-C data cable, Vehicle charging bracket |
