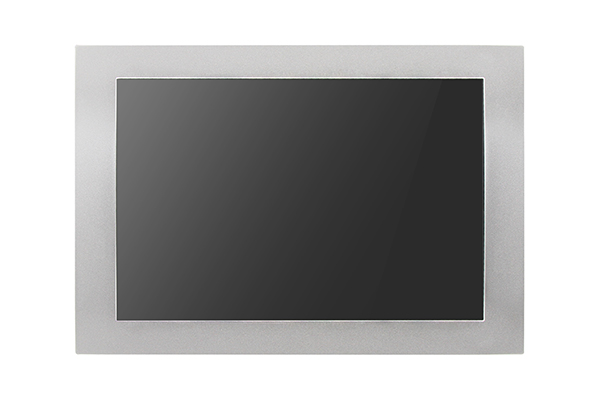

21" industrial-grade display, resistive touch screen;
High-strength aluminum alloy panel, sealed, fanless and dust-proof design.

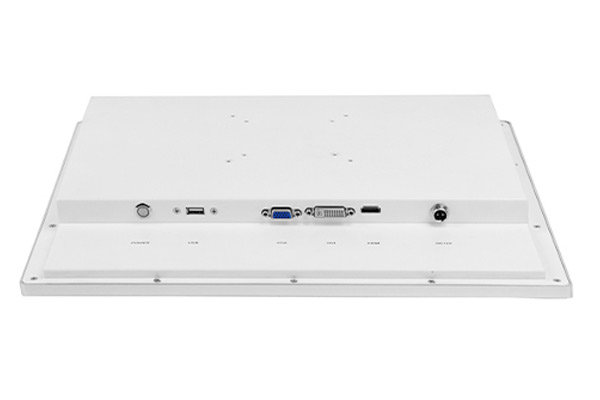

1*VGA, 1*HDMI, 1*DVI, 1*USB2.0
100~240V AC/50~60Hz (with adapter)/12V DC power input, 10W
| Model | PDS-GS2101T |
| Features | 21" industrial-grade display, resistive touch screen High-strength aluminum alloy panel, sealed, fanless, and dust-proof design 1*VGA, 1*HDMI, 1*DVI, 1*USB2.0 Panel color: silver |
| Display | |
| LCD Type | 21" TFT LED |
| Max. Resoltuion | 1440*900 |
| Luminance | 250 cd/m |
| Contrast Ratio | 1000:1 |
| Touchscreen Type | Resistive touch screen |
| USB | 1*USB 2.0 Touch interface |
| Video | 1*VGA, 1*HDMI, 1*DVI |
| Power Input | 100~240V AC/50~60Hz (with adapter)/12V DC power input |
| Power Consumption | 10W (standby state) |
| Environment | |
| Operating Temp. | -10℃～50℃ @ 5 ~ 85% RH. with airflow |
| Storage Temp. | -20℃ ～60℃ |
| Humidity | 95% @40℃, non-condensation |
| IP Rating | Front panel IP65 (optional) |
| Shock Protection | acceleration 10G/11ms |
| Reliability | MTBF≥50000h; MTTR≤0.5h |
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Mechanical | |
| Weight | 1.5 kg/2.6kg |
| Color | silver |
| Material | Aluminum alloy panel fanless design |
