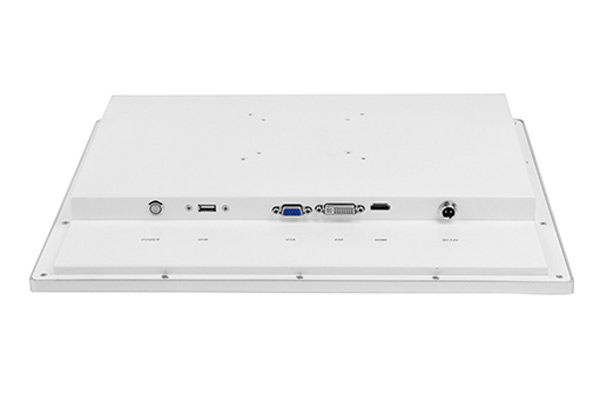

19" industrial-grade display, resistive touch screen;
High-strength aluminum alloy panel, sealed, fanless, and dust-proof design;
1*VGA, 1*HDMI, 1*DVI, 1*USB2.0;
Panel color: silver.
19" TFT LED
1440*900
250 cd/m
1000:1
Resistive touch screen
1*USB 2.0 Touch interface
1*VGA, 1*HDMI, 1*DVI
100~240V AC/50~60Hz (with adapter)/12V DC power input
10W (standby state)
Display | |
LCD Type | 19" TFT LED |
Max. Resolution | 1440*900 |
Luminance | 250 cd/m |
Contrast Ratio | 1000:1 |
Touchscreen Type | Resistive touch screen |
USB | 1*USB 2.0 Touch interface |
Video | 1*VGA,1*HDMI, 1*DVI |
Power Input | 100~240V AC/50~60Hz (with adapter)/12V DC power input |
Power Consumption | 10W (standby state) |
Environment | |
Operating Temp. | -10℃~50℃ @ 5 ~ 85% RH. with airflow |
Storage Temp. | -20℃ ~60℃ |
Humidity | 95% @40℃, non-condensation |
IP Rating | Front panel IP65 (optional) |
Shock Protection | acceleration 10G/11ms |
Reliability | MTBF≥50000h; MTTR≤0.5h |
Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration. |
Mechanical | |
Dimension (W x H x D) | 475*308*41mm |
Weight | 1.5 kg/2.6kg |
Color | silver |
Material | Aluminum alloy panel fanless design |

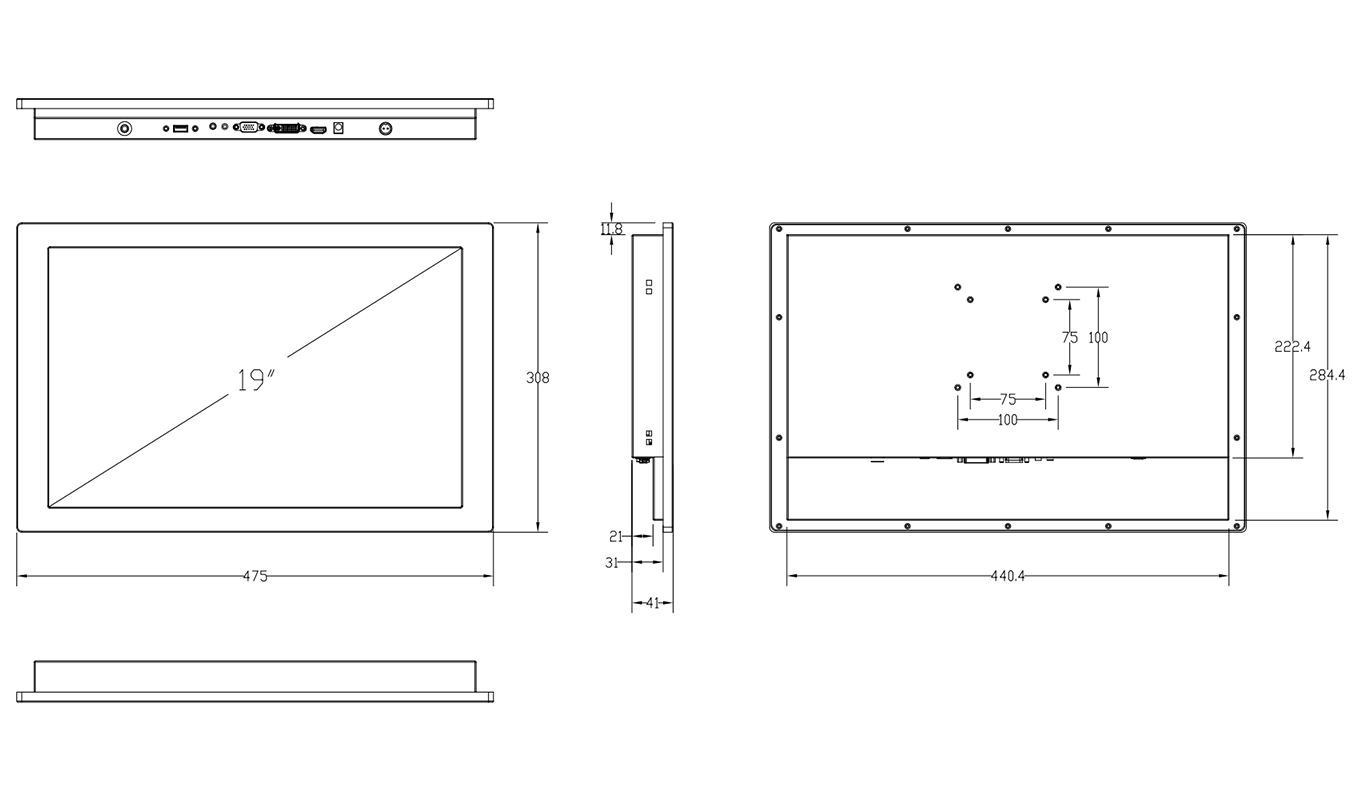

Dimensions |
