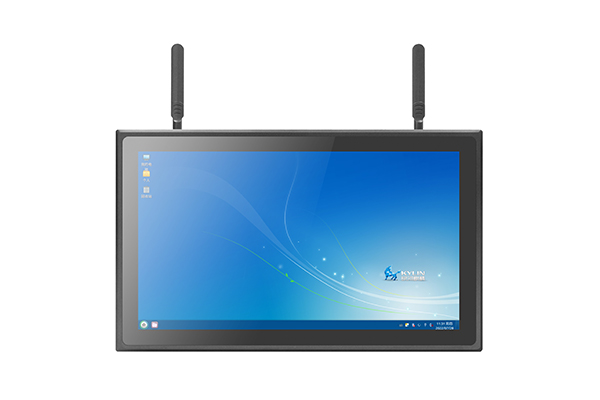

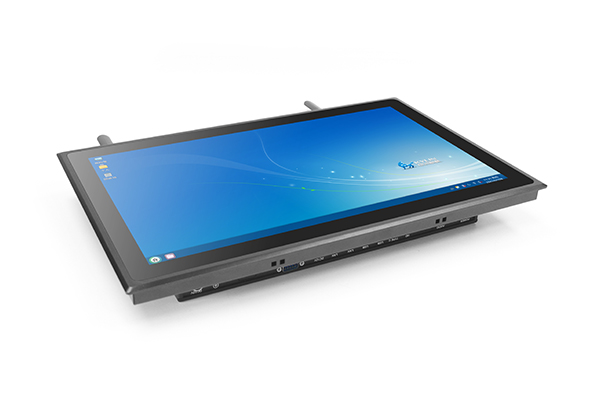

Industrial display, capacitive touch screen
4GB LPDDR4
USB2.0*2/USB3.0*2/RS232*2
HD*1/Gigabit LAN*1+100M LAN*1
Equipped with Kirin system.
Standard 32GB EMMC (optional 16GB/64GB).
VESA mount, embedded, desktop, wall mounted installation way is available.
Fanless design with low power consumption.
| System Hardware | |
| CPU | RK3399 six-core (A72x2+A53x4) 2.0GHz processor |
| Memory | 4GB LPDDR4 |
| Storage | Standard 32GB EMMC (optional 16GB/64GB) |
| Display | |
| LCD Type | 18.5" capacitive multi-touch screen |
| Touchscreen | 18.5″ LCD |
| Contrast Ratio | 1000: 1 |
| Luminance | 350 cd/m2 |
| Max. Resoltuion | 1366*768 |
| OS | |
| OS | Kylin system 4.0.2 |

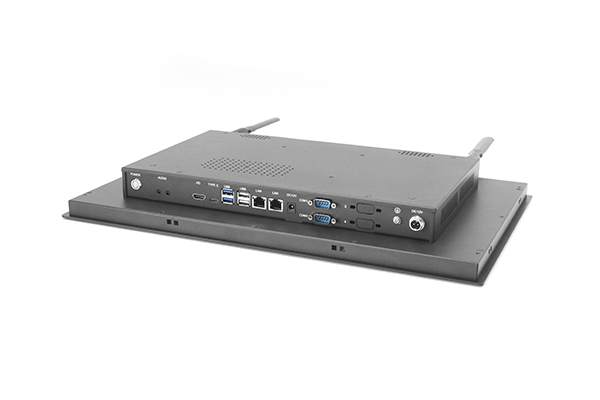

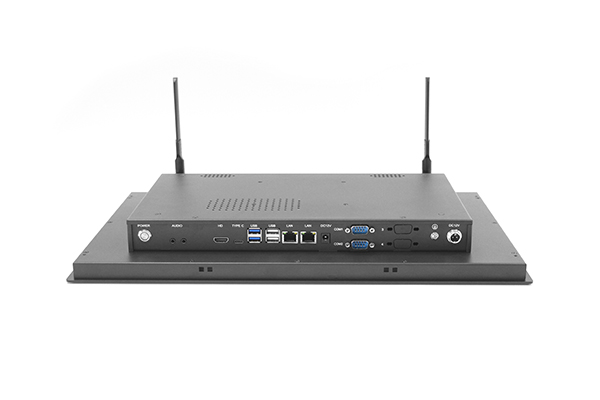

| I/O Interface | |
| USB | 2*USB2.0/2*USB3.0, 1*TYPE C (download system) |
| Serial port | 2*RS232 (optional RS485) |
| LAN | 1*1000M+1*100M network interface |
| Video | 1*HD |
| Expansion Slot | 1*Mini PCIe |
| Power | |
| Power Input | 12V DC aviation plug input (9~36V wide voltage module optional, standard 12/5A aviation plug power adapter) |
| Environment | |
| Operating Temp. | -10℃～60℃ Surface air flow |
| Storage Temp. | -20℃～70℃ |
| Humidity | 80% @50℃, no condensation |
| IP Rating | Front panel IP65 |
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Shock Protection | 10g acceleration, 11ms period |
| Reliability | MTBF≥30000h; MTTR≤0.5h |

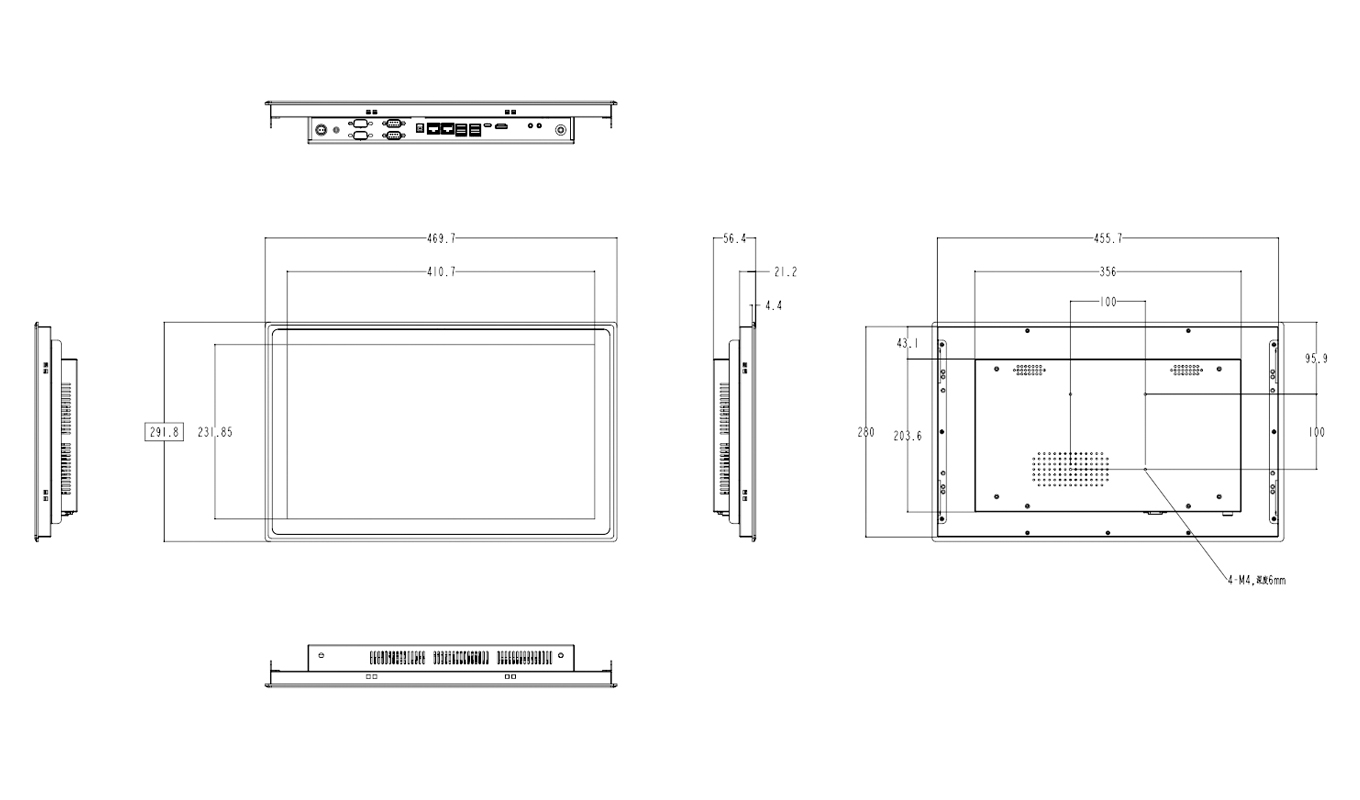

| Mechanical | |
| Dimension (W x H x D) | 469.7mm*291.8mm*56.4mm |
| Weight | 4.9kg/5.7kg(N.W./G.W.) |
| Color | Black |
| Material | Aluminum alloy panel all metal fanless design |
| Mounting | VESA installation: 100*100mm Embedded installation: 455.7mm*280mm |
