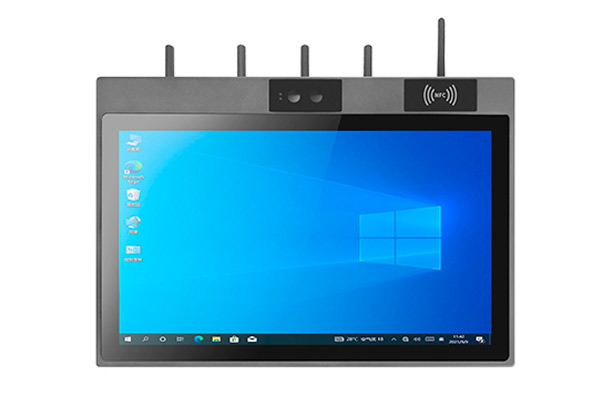

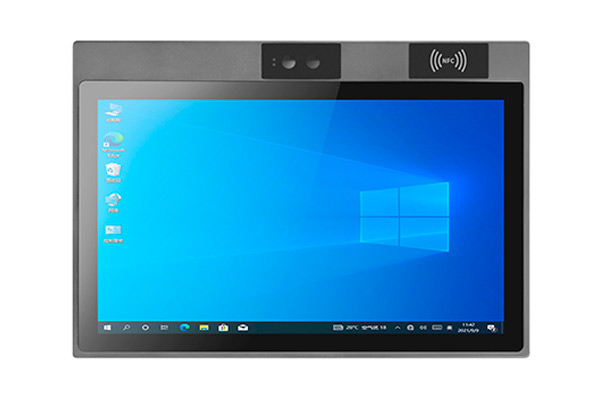

Intel® Bay Trail J1900 2.0GHz low power processor (optional Core™ i3/i5/i7).
Industrial display, capacitive touch screen.
4G DDR3L RAM, Up to 8GB/16GB.
6*USB, 2*RS232, optional 6 serial ports.
1*HD, 1*VGA.
1*Gigabit LAN, support Wake-on-LAN/PXE.
Fanless ultra-slim design, IP65-rated front panel.
Support netcom 5G communication, with SIM card.
2*RS232(1~2*RS485 optional).
5*USB2.0 +1*USB3.0.
1* GbE Lan.
1*HD, 1*VGA, 1*GPIO (2in/2out) (occupies a DB9).
Optional 4G, WIFI/BT, GNSS, NFC/RFID/2D.
Windows 7/10, Linux.
System Hardware | |
CPU | Intel® Bay Trail J1900 Quad-Core-Quad-Thread-Processor ( optional Core™ I3/I5/I7) |
Memory | 4G DDR3L, Up to 8GB/16GB |
Storage | 4GB/8GB, Core™ supports up to 16GB |
Display | |
Audio | 1*Line-out, 1*Mic-in |
LCD Type | 18.5″ TFT-LCD |
Touchscreen | Multi-touch capacitive touch screen |
Max. Resoltuion | 1366*768 |
Luminance | 250 cd/m2 |
OS | |
OS | Windows 7/10、Linux |

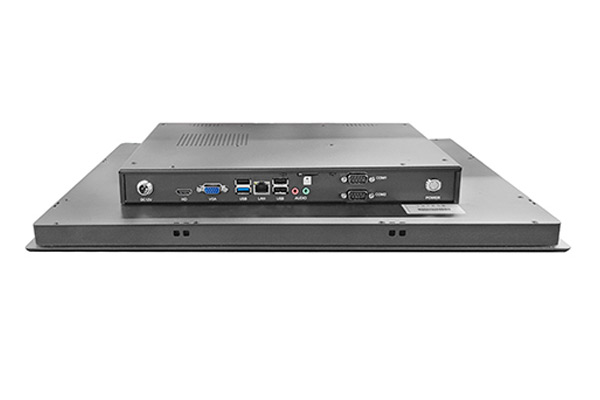

I/O Interface | |
USB | 5*USB2.0 +1*USB3.0 |
Serial port | 2*RS232(1~2*RS485 optional) |
LAN | 1* GbE Lan |
Audio | 1*Line-out, 1*Mic-in |
Video | 1*HD, 1*VGA |
GPIO | 1*GPIO (2in/2out) (occupies a DB9) |
Expansion Slot | 1*Mini PCIe(WiFi/BT/3G/4G/5G Optional) |
SIM Card | 1*SIM card holder |
Communication | |
WIFI/BT | Full Netcom 5G communication, dual-band WIFI+BT |
GNSS | optional |
Extended Functions | |
NFC/RFID | Support |
Barcode Scanner | Optional 1D/2D barcode scanner, 2 choose 1 |
Facial Recognition | Optional binocular facial recognition function |
Power | |
Power Input | 12V DC input (12/5A power adapter; 9-36V DC IN optional) |
Environment | |
Operating Temp. | -10℃~60℃, without air flow |
Storage Temp. | -20℃~70℃ |
Humidity | 95% @40℃, non-condensing |
IP Rating | Front panel IP65 |
Reliability | MTBF≥30000h; MTTR≤0.5h |
Shock Protection | 10G/11ms |
Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
Certificate | |
Certificate | CE, RHOS |
Mechanical | |
Material | Aluminum alloy panel all metal fanless design |

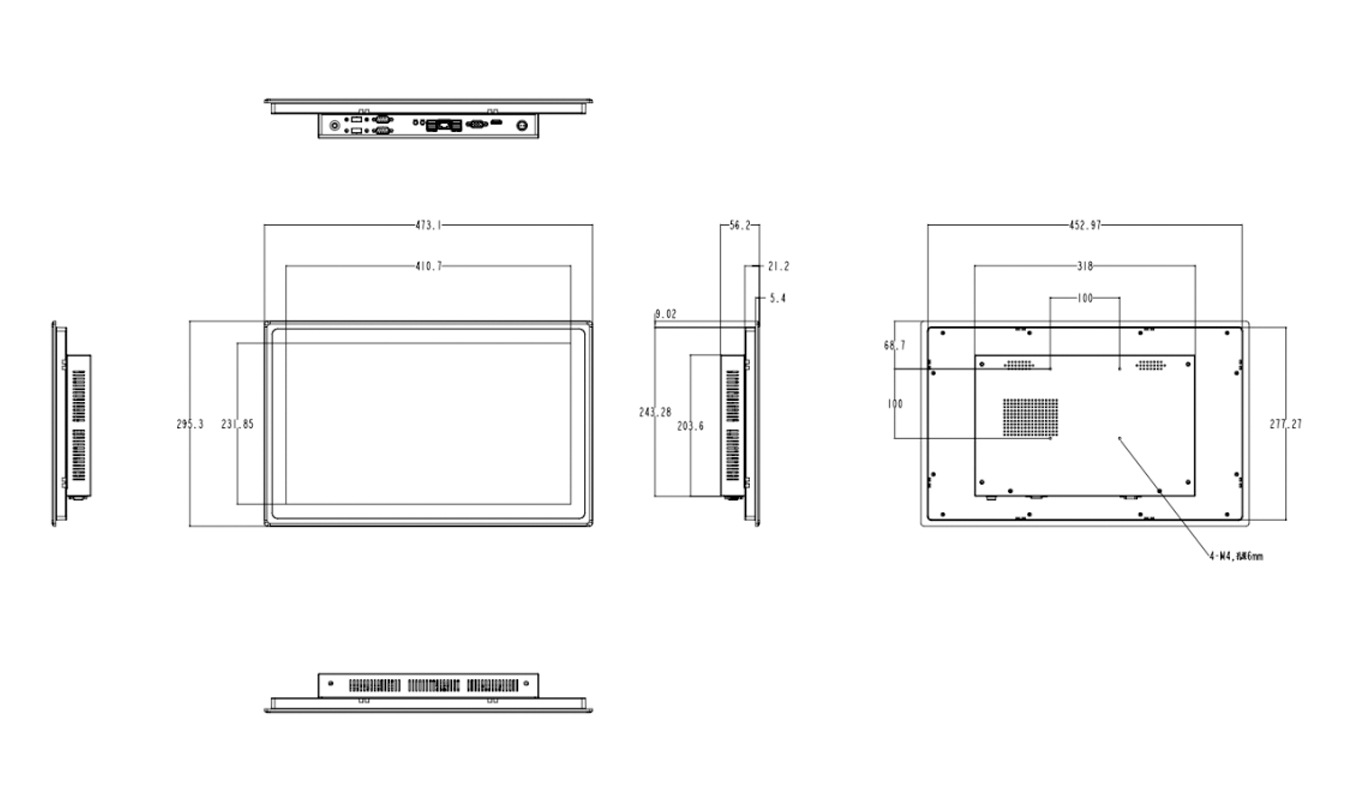

Dimension (W x H x D) | 473.1*295.3*56.2mm |
Weight | 6.25kg/7.45kg(N.W./G.W.) |
Color | Black/Silver |
Optional Accessory | |
Mounting | VESA mounting: 100*100mm Embedded installation: 452.97*277.27mm |
