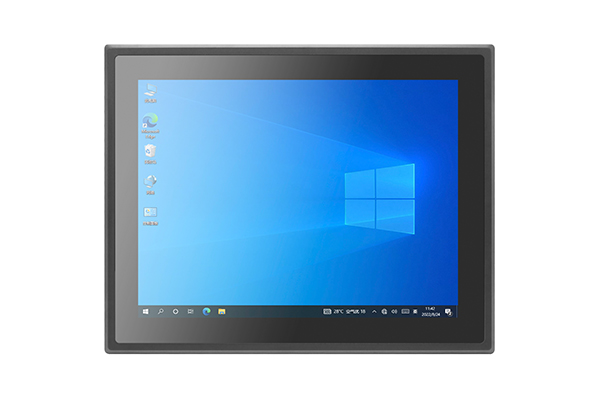

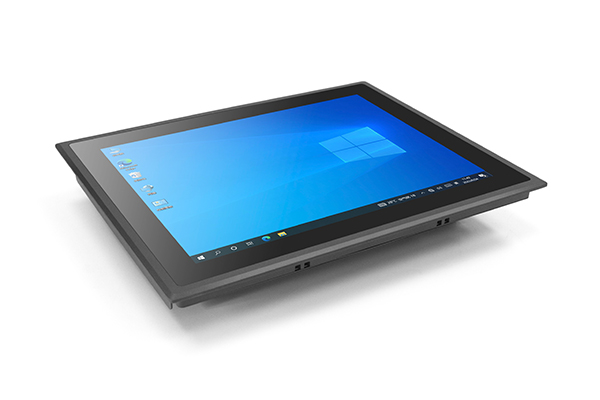

Industrial display, capacitive touch screen
16GB DDR4+512GB SSD
Fanless design, oversized aluminum radiator
Optional i3-8145U Processor /i5-8265U Processor
Intel® Whiskey lake i7-8565U Processor.
IP65 waterproof and dustproof front panel.

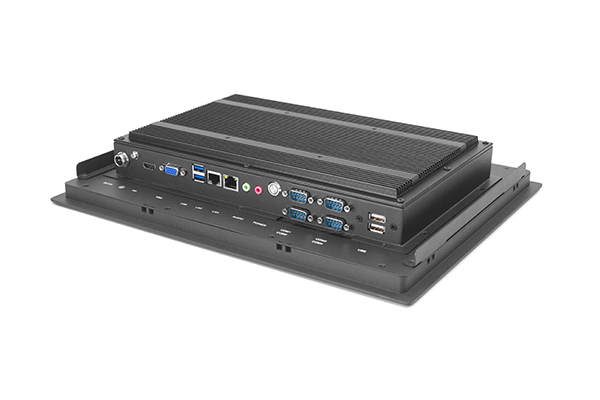

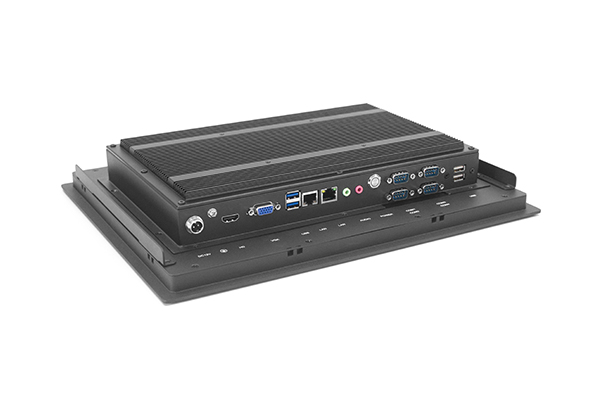

Rich I/O, including HDMI, RS232/RS485, USB, Gigabit Ethernet port, GPIO, etc.
Support 9V- 36V wide voltage.
| System Hardware | |||
| CPU | Intel® Whiskey lake i7-8565U 1.8GHz processor (Turbo frequency up to 4.6GHz) | Storage | Standard 512GB M.2 SSD (64GB/128GB/256GB optional) |
| Memory | 16G DDR4 | Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| Display | |||
| LCD Type | 15″ LCD | Luminance | 350 cd/m2 |
| Touchscreen Type | capacitive touch screen | Contrast Ratio | 1000: 1 |
| Max. Resolution | 1024*768 | ||
| OS | |||
| OS | Windows 7/10、Linux | ||

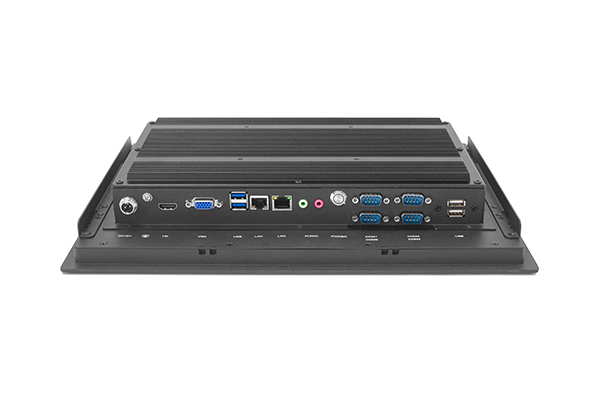

| I/O Ports | |||
| USB | 2*USB3.0+2*USB2.0 | Video | 1*HD, 1*VGA |
| Serial port | 4*RS232 (optional RS485/422) | GPIO | 1*GPIO (2in/2out) (occupies a DB9) |
| LAN | 2*1000M network interface | Expansion Slot | 1*Mini PCIe(WiFi/BT/3G/4G/5G Optional) |
| Audio | 1*Line-in+1*Mic-in | SIM Card | 1*SIM card holder |
| Power | |||
| Power Supply | 12V DC input (9~36V wide voltage module optional, standard 12/5A power adapter) | ||
| Environment | |||
| Operating Temp. | -10℃～60℃ Surface air flow | Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Storage Temp. | -20℃～70℃ | Shock Protection | 10g acceleration, 11ms period |
| Humidity | 95% @40℃, non-condensing | Reliability | MTBF≥30000h; MTTR≤0.5h |
| IP Rating | Front panel IP65 | ||
| Mechanical | |||

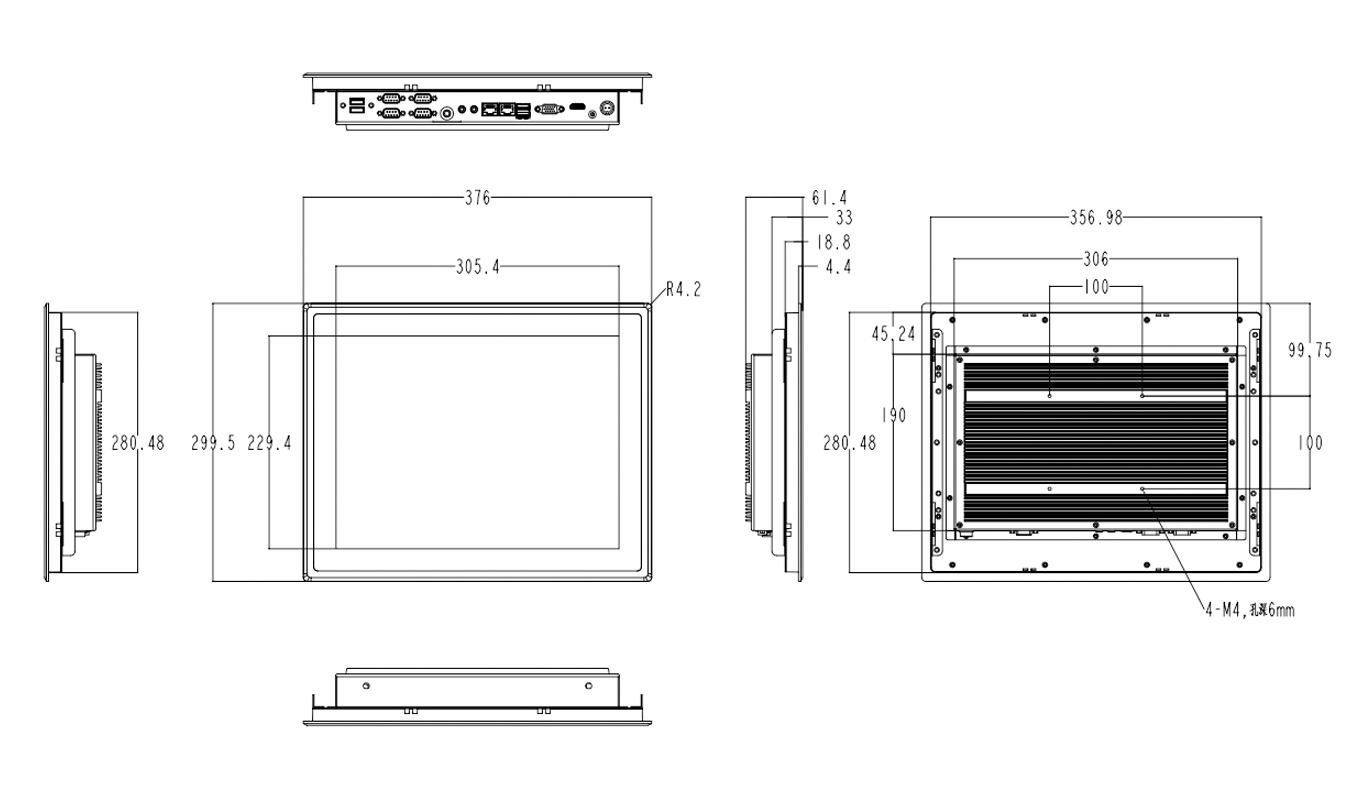

| Dimension (W x H x D) | 407*325*54mm | Material | Aluminum alloy panel all metal fanless design |
| Weight | 4.1kg/6.9kg(N.W./G.W.) | Mounting | Embedded installation: 387*305mm |
