Intel® Bay Trail J1900 Quad Core Processor.
10.1 inch industrial grade display.
Five-wire resistive touch screen.
4GB LPDDR3 memory (8GB optional).
32G SSD (optional 64GB/128GB/256GB /512GB).

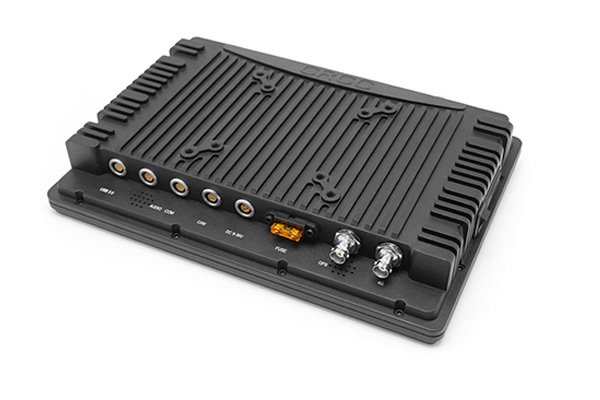

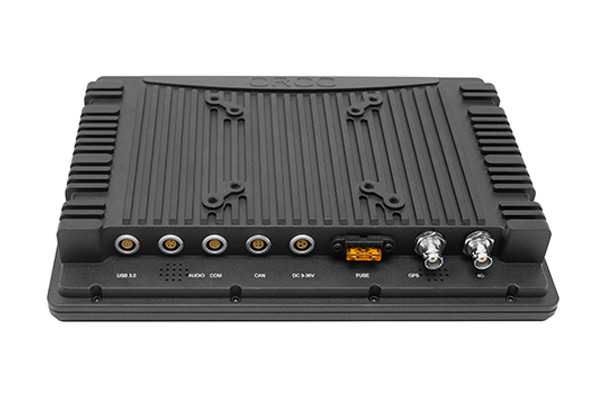

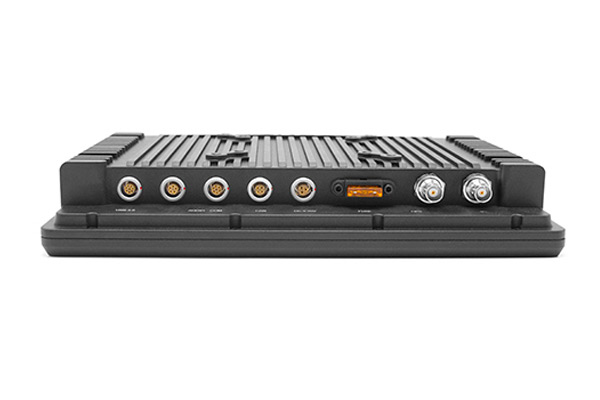

Full aviation plug design interface.
2*USB2.0/2*RS232/1*LAN/1*DC in.
Sealed fanless dustproof design.
Front panel IP65.
Vehicle Mount Computer.
2*RS232 interface, 1 7pin aviation plug.
2*USB2.0 interface, 1 8pin aviation plug.
Support 100M LAN, 1 6pin aviation plug (optional gigabit LAN).
Optional 4G, WIFI/BT, GNSS, NFC/RFID/2D.
Windows 7/8.1/10, Linux.
| System Hardware | |
| CPU | Intel® Core™ I5-6200U Processor |
| Memory | 4GB DDR4 (8GB/16GB optional) |
| Storage | 64G SSD (optional 128GB/256GB/512GB) |

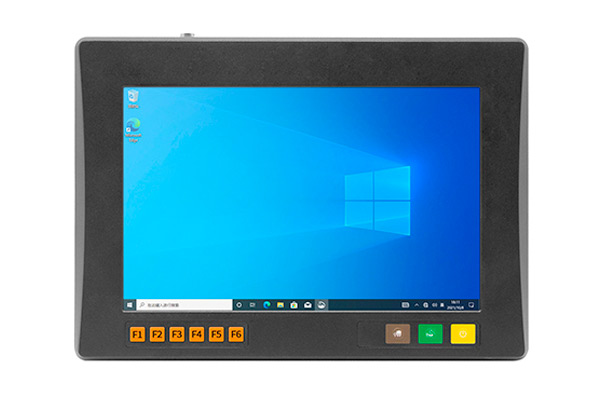

| Button | Panel with 1 switch button, 2 custom buttons (optional 6 custom buttons F1-F6) |
| Audio | 2*4Ω, 3w speaker |
| Display | |
| LCD Type | 10.1 inch industrial grade display |
| Touchscreen | Five-wire resistive touch screen |
| Max. Resoltuion | 1280*800 |
| Luminance | 350 cd/m2 |
| OS | |
| OS | Windows 7/8.1/10, Linux |
| I/O Interface | |
| Serial port | 2*RS232 interface, 1 7pin aviation plug |
| Switch | Square switch (on and off function of the whole machine) |
| USB | 2*USB2.0 interface, 1 8pin aviation plug |
| 4G | optional |
| LAN | Support 100M LAN, 1 6pin aviation plug (optional gigabit LAN) |
| Communication | |
| WIFI/BT | Dual-band WIFI, external antenna |
| GNSS | Optional |
| Extended Functions | |
| NFC/RFID | Optional NFC/HF-RFID/UHF-RFID, 3 choose 1 |
| Barcode Scanner | Optional 1D/2D barcode scanner, 2 choose 1 |
| Power | |
| Power Input | 9-36V DC input 1 3pin aviation plug (with ITPS function, support ACC delay switch, the whole machine with 5A insert fuse) |
| Environment | |
| IP Rating | Front panel IP65 |
| Operating Temp. | -10℃～60℃ Surface air flow |
| Storage Temp. | -20℃～70℃ |
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Shock Protection | Acceleration 10G/11ms |
| Reliability | MTBF≥30000h; MTTR≤0.5h |
| Certificate | |
| Certificate | CE, RHOS |
| Mechanical | |
| Material | All-metal aluminum alloy fanless design |

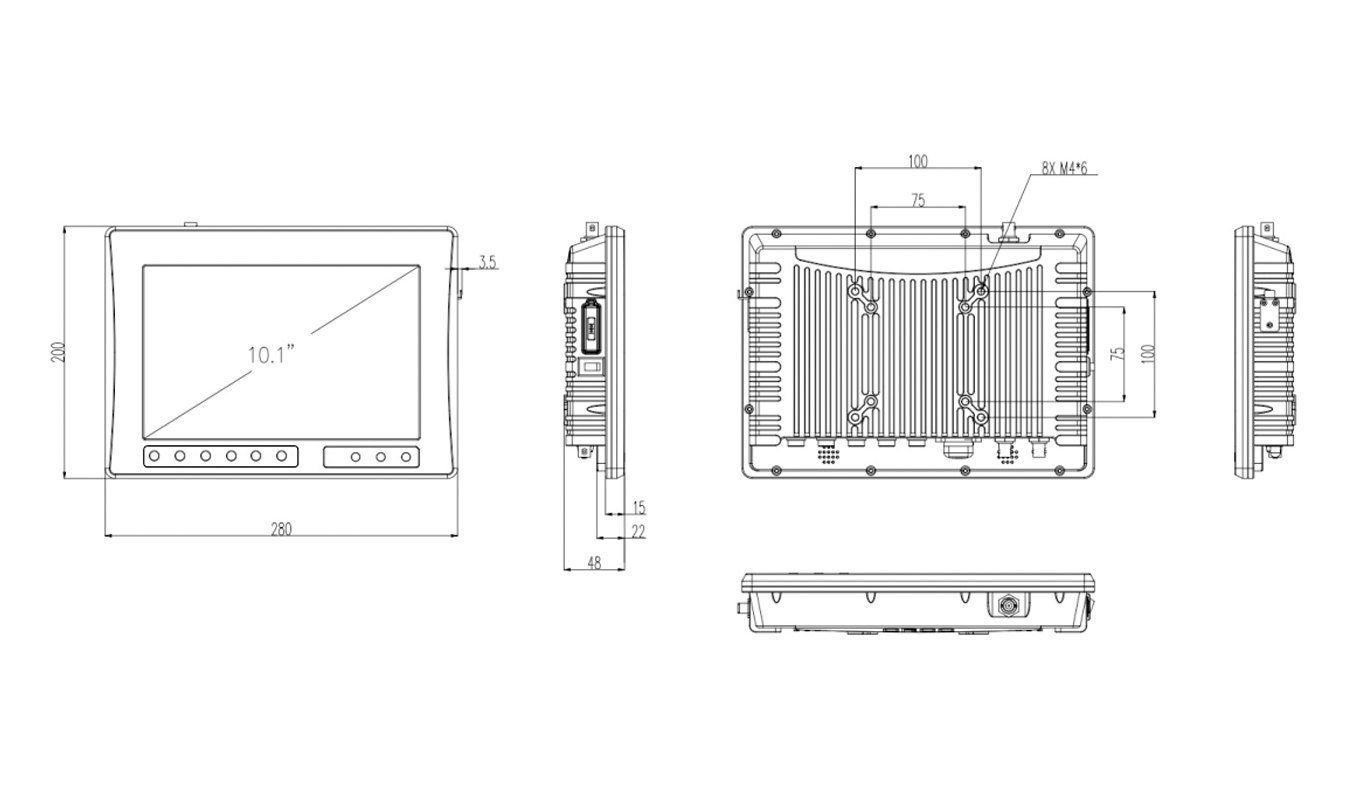

| Dimension (W x H x D) | 280*200*48mm |
| Weight | 2.1kg/2.6kg(N.W./G.W.) |
| Color | Black |
| Optional Accessory | |
| Mounting | VESA installation: 75*75mm, 100*100mm |
