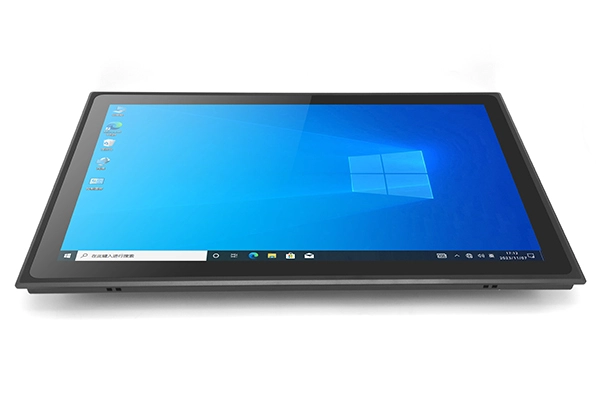

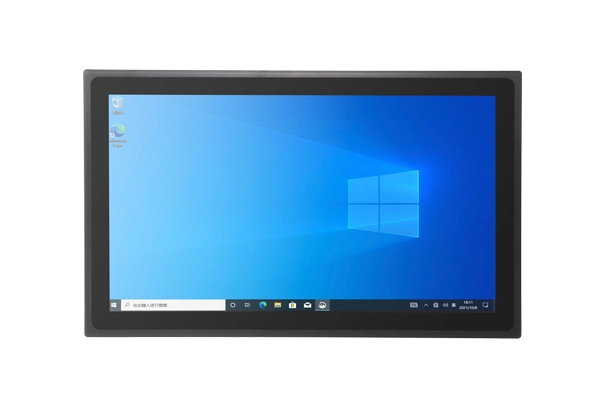

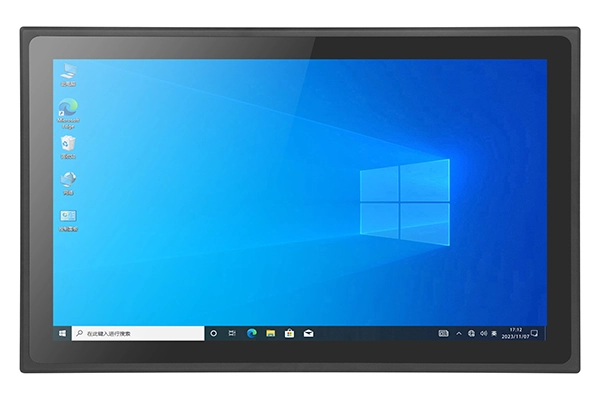

21.5" Intel® Wiskeylake Core™ i3 8145U (optional i5-8257U/i7-8569U)
Industrial display, multi-point capacitive touch screen
21.5" Intel® Wiskeylake Core™ i3 8145U (optional i5-8257U/i7-8569U)
Industrial display, multi-point capacitive touch screen
2*SO-DIMM DDR4 8GB (up to 32GB)

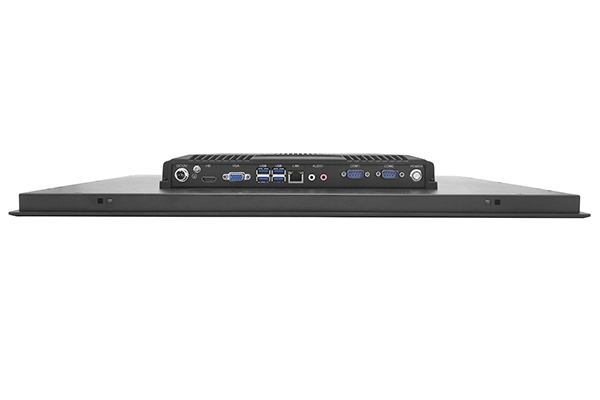

4*USB3.0/2*RS232 (optional RS485/422)
1*HDMI/1*VGA/1*Gigabit LAN/2*Audio

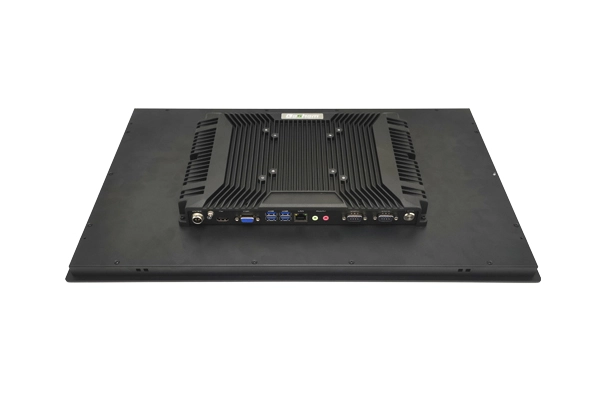

Fanless design
| System Hardware | |
| CPU | Intel® WHISKEYLKE CORE ™ i3 8145U processor (8th Gen i5/i7 optional) |
| Memory | 8GB (16/32GB optional) |
| Storage | 128GB SSD (256/512GB optional) |
| Watchdog | 0-255 seconds/classification is realized by system software |
| Display | |
| LCD | 21.5″ |
| Backlight life | 50000h |
| Resoltuion | 1920*1080 |
| Luminance | 250 cd/m2 |
| Contrast Ratio | 1000: 1 |
| Display angle | 178°(H)*178°(V) |
| Touch Screen | |
| Touchscreen | 21.5″multi point capacitive touch screen |
| Transmittance | ＞85% |
| Hardness | 6H |
| OS | |
| OS | Win10,Linux |

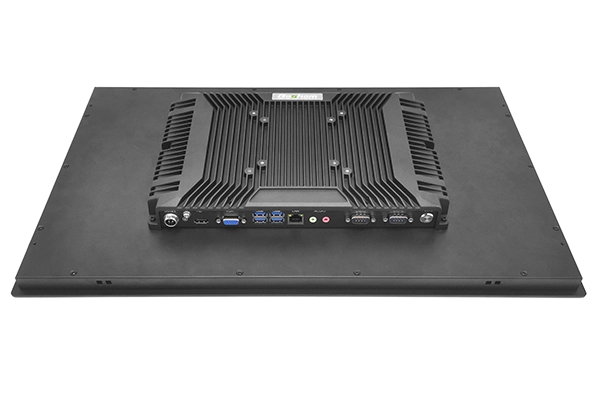

| I/O Interface | |
| USB | 4*USB3.0 |
| COM | 2*RS232（Optional RS485/422) |
| LAN | 1*1000M LAN port（2*1000M LAN ports optioanl） |
| Audio | Mic in, Line out |
| Vedio | 1*HDMI,1*VGA |
| Expansion | Dual -band WIFI/4G/5G module optional |
| SIM card slot | 1*SIM card slot |
| GPIO | 1*8bit DIO, occupying a DB9 interface |
| Power | |
| Power Supply | Standard 12V/5A aviation head adapter（2Pin Phoenix terminals Optional） |
| Environment | |
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19- 200Hz/1.0g acceleration |
| Shock Protection | 10g acceleration, 11ms period |
| Reliability | MTBF≥30000h; MTTR≤0.5h |
| Operating Temp | -10℃～60℃, without air flow |
| Storage Temp | -20℃～70℃ |
| Humidity | 95% @40℃, non-condensing |
| IP Level | Front panel IP65 |
| Mechanical | |

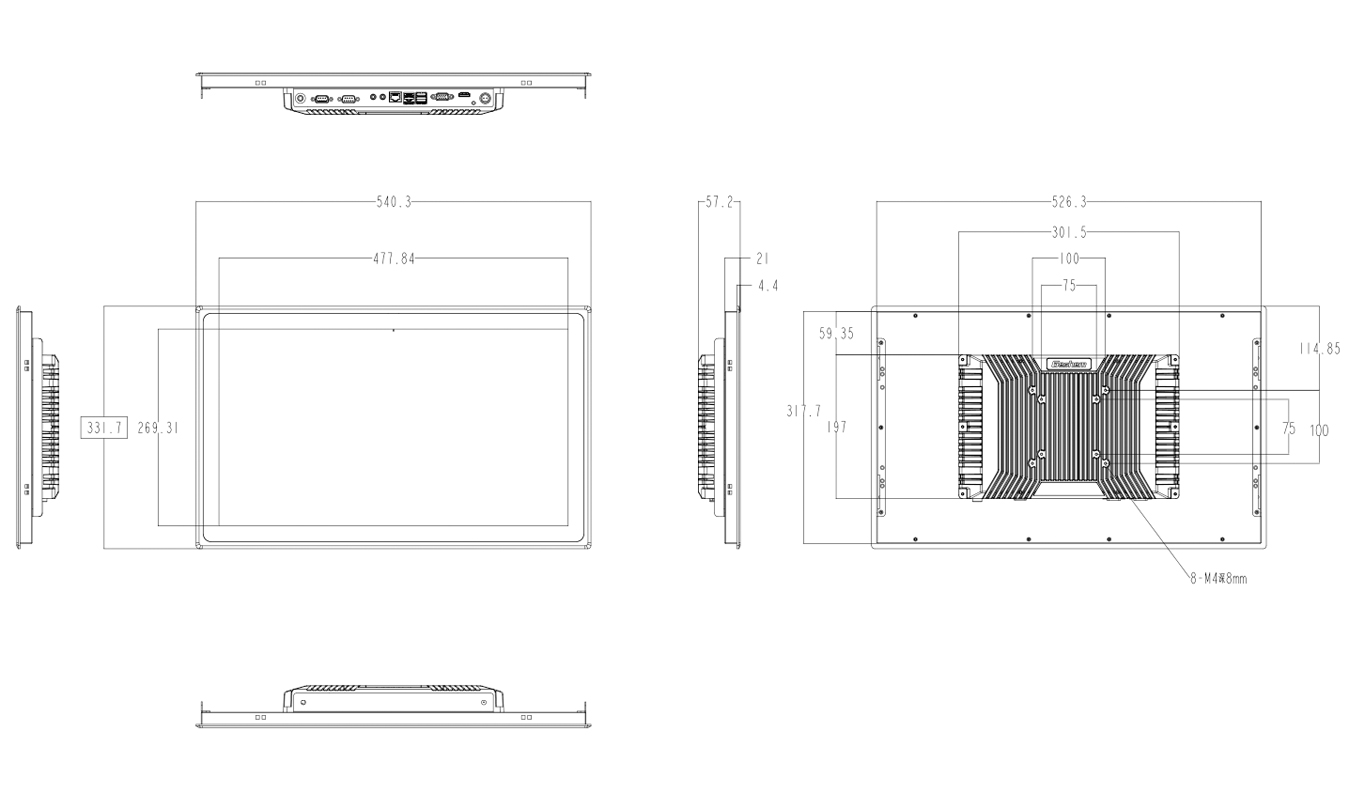

| Dimension(LxWxH) | 540.3mm*331.7mm*57.2mm |
| Weight | 6.3kg/6.8kg (N.W./G.W.) |
| Color | Black |
| Material | All metal fanless design |
| Mounting | VESA installation: 100*100mm/75*75mm Embedded installation: 526.3mm*317.7mm |
