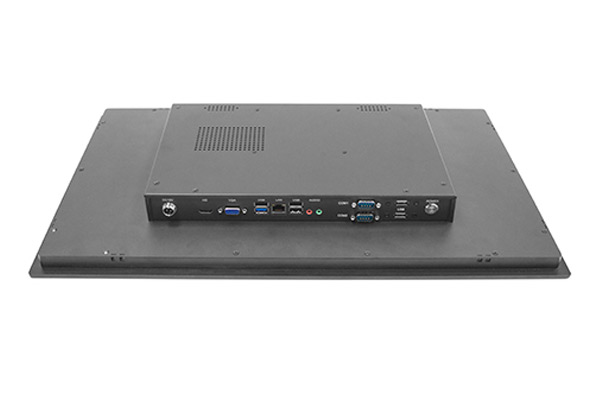

fanless industrial touch panel pc

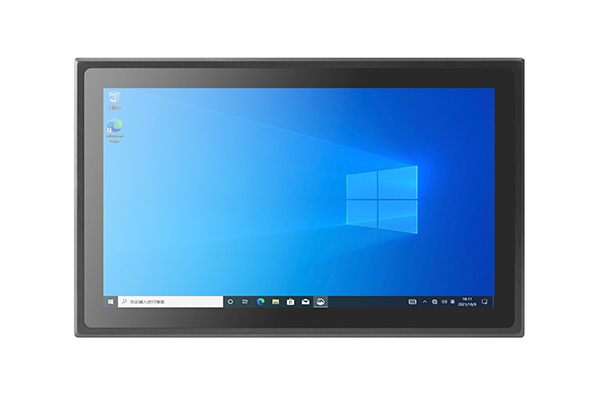

fanless panel pc touch screen
fanless industrial touch panel pc
fanless panel pc touch screen

21.5 Inch All In One Economy Touch Panel PC

TY215

Intel® Bay Trail J1900 2.0GHz Processor;

IP65 Rated Front Bezel;

10inch-21inch Touchscreen Displays;

12V DC input (12/5A power adapter; 9-36V DC IN optional).


Get A Quote
Spec Download
Specification
Dimension
Accessories

Specification of 21.5 inch all in one Economy Touch Panel PC

System Hardware
CPUSupport intel J1900 processor
Chipset/
MemoryUp to 8GB
StorageUp to 512GB
Watchdog255 timer levels, setup by software
Display
LCD Type21.5" TFT-LCD
Max. Resolution1920*1080
Luminance250 cd/m2
Viewing Angle178°(H)*178°(V)
Contrast Ratio1000:1
Backlight Life-Time30000 hr (min.)
Touchscreen
Touchscreen TypePCAP multi-touch
Light Transmission>78%
Hardness3H
OS
OSWindows 7, Windows 10, Linux
I/O Ports
USB3*USB 2.0 + 1*USB3.0 (Celeron J1900)
Serial port2*RS232 (1*RS422/RS485 optional )
LAN1* RJ45 Gigabit Ethernet (Intel I211-AT)
Audio1*Line-out, 1*Mic-in
Video1*HDMI, 1*VGA
GPIO4In/4Out (Occupy 1*COM, optional)
Expansion Slot1*Mini PCIe (Wifi/BT/3G/4G optional)
Power
Power Input9~24V DC Input (9~36V DC optional) 12V/5A power adapter
Power Consumption/
Environment
Operating Temp.-10℃~50℃, with airflow
Storage Temp.-20℃~60℃
Humidity95% @40℃, non-condensing
IP RatingFront panel IP65 (optional)
Shock Protectionacceleration 10G/11ms
Vibration Protection5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration
Certificate
Certificate/
Mechanical
Dimension (W x H x D)543*334.4*56.2mm
Weight8.31kg
ColorBlack/Silver
MountingVESA mounting: 100*100mm
Panel mounting: 523*314.4mm
Dimensions

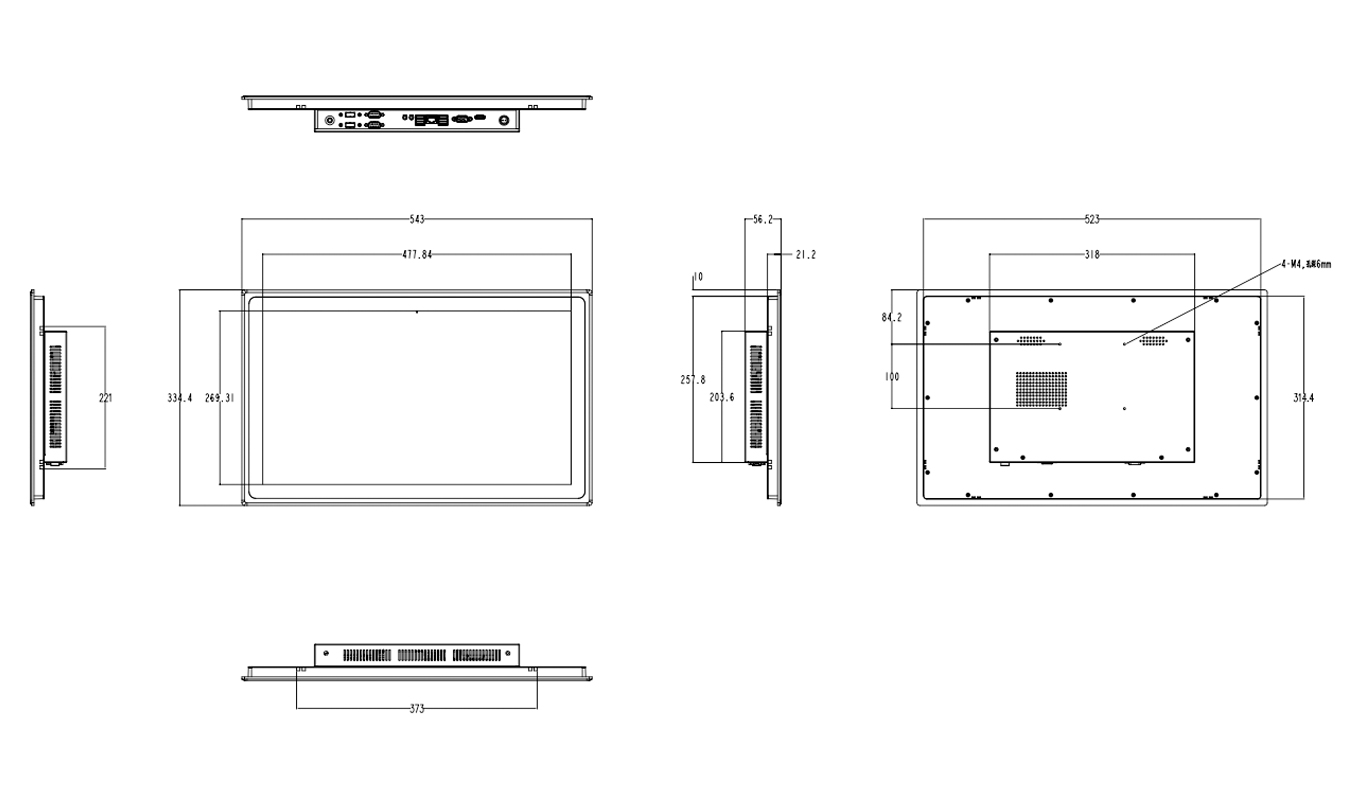

Dimension of 21.5 Inch All In One Economy Touch Panel PC

Dimension of 21.5 Inch All In One Economy Touch Panel PC

Accessories of 21.5 Inch All In One Economy Touch Panel PC

Packing List

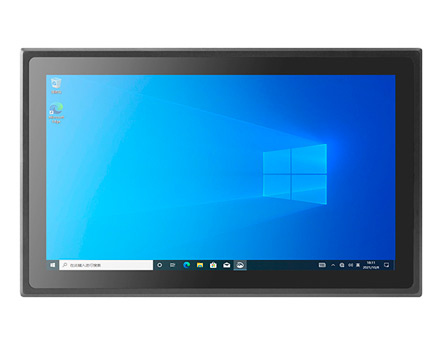

device of industrial pc all in one
device of industrial pc all in one

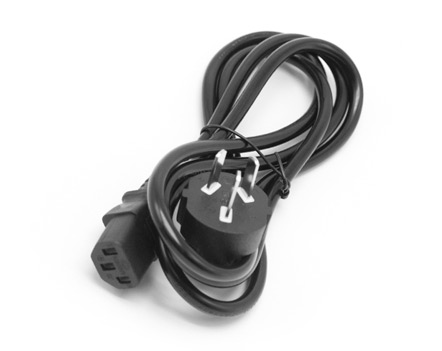

power supply of industrial all in one pc
power supply of industrial all in one pc

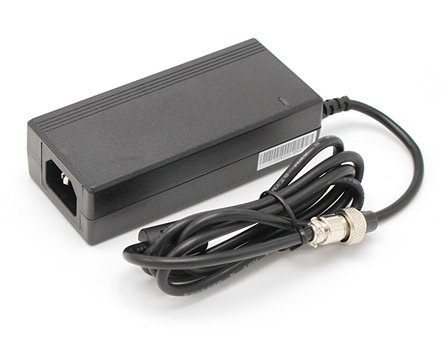

power adapter of industrial all in one computers
power adapter of industrial all in one computers
