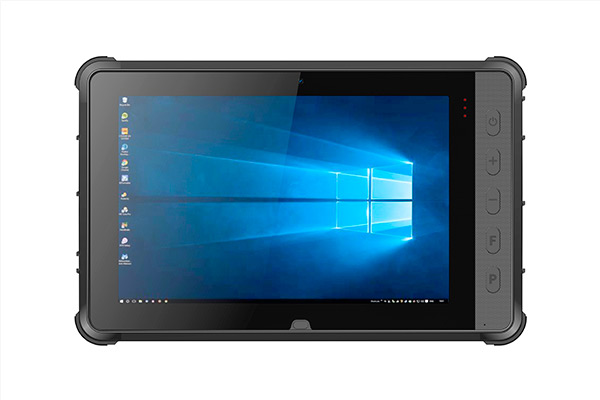

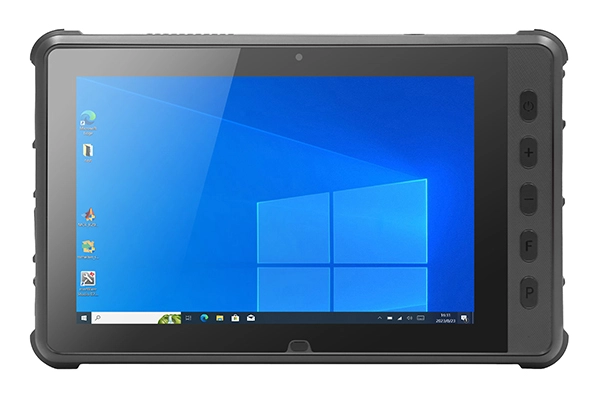

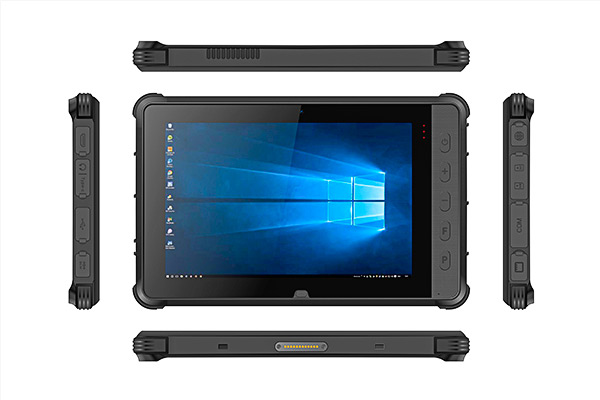

10.1'' WXGA (1920*1200) 750 nits IPS LCD.
Intel® Core™ i5-1135G7/i7-1165G7 Processor.
WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.2G dual-band WIFI, Bluetooth 5.2.
Front 5MP fixed focus camera, rear 8MP autofocus camera.
Front 5MP fixed focus camera, rear 8MP autofocus camera
Optional 1D/2D barcode scanning, RFID
capacitive touch screen
IP65 protection level of the whole machine, 1.2m drop protection
Windows 10/11
| System Hardware | |
| CPU | Intel® Core™ i5-1135G7/i7-1165G7 |
| Memory | 8GB |
| Storage | 128GB (optional 256GB/512GB) |
| Camera | Front-facing 5MP fixed-focus camera; rear 8MP autofocus camera |
| Speaker | One speaker, 1.2W/8Ω aluminum film, IP67 waterproof |
| MIC | One microphone |
| Button | Power key, volume +/-, Home key, F 2D key , P flashlight key |
| LED Indicator | charging indicator |
| Sensor | Gsensor, geomagnetic induction |
| Display | |
| LCD Type | 10.1" IPS LCD |
| Max. Resoltuion | 1920*1200 |
| Luminance | 750cd/m2, TP light transmittance 90% |
| Touchscreen | 5-point capacitive touch screen |
| Cover Glass | Corning Gorilla Glass III, hardness 7H, light transmittance 90% |
| OS | |
| OS | OS Windows 10、Windows 11 |

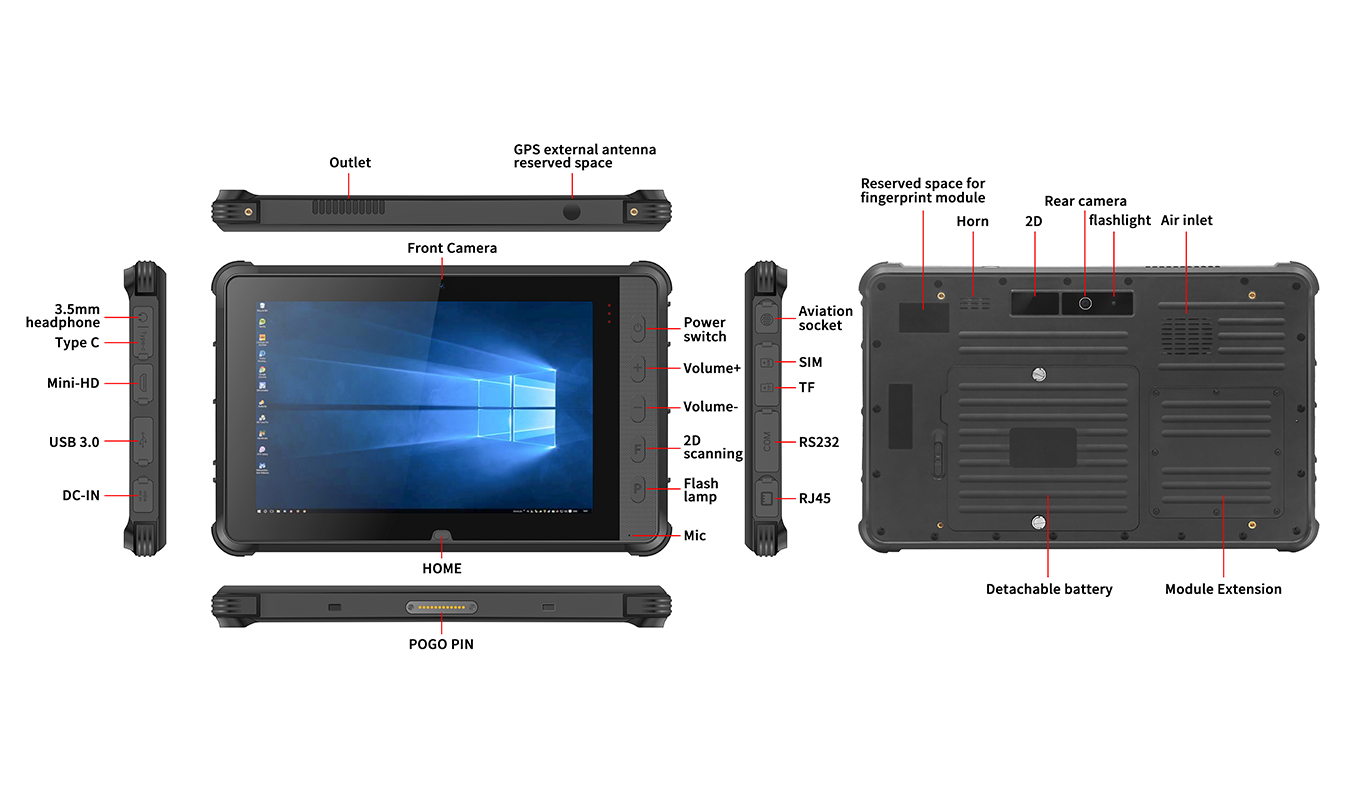

| I/O Ports | |
| POGO PIN | 1*POGO PIN |
| USB | 1*USB Type C 1*USB 3.0, Type A |
| Video | 1*mini HD |
| Audio | 3.5mm headphone jack |
| DC Jack | 1*DC Jack |
| LAN | 1*RJ45 |
| COM Port | 1*RS232 |
| SIM Card Slot | 1*Micro SIM card holder |
| TF Card Slot | 1*TF card holder, maximum support 128GB |
| Aviation Plug | Expansion 1*CAN either or 1*USB |
| Communication | |
| 5G | WCDMA：B1/B3/B5/B6/B8/B19 LTE-TDD：B34/B38/B39/B40/B41/B42/B43 LTE-FDD：B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32 5G NR SA：n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79 5G NR NS：n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79 |
| WIFI | WIFI6E, 2.4G+5G+6G |
| Bluetooth | Bluetooth 5.2 |
| GNSS | U-blox GPS+BeiDou+GLONASS |
| 4G | Optional ( Refers to 4G function, no 5G function) |
| Extended Functions | |
| RFID | Optional LF RFID/HF RFID/UHF RFID |
| ID Card Recognition | Optional ID card recognition module |
| Fingerprint | Optional, store 3000 fingerprint information |
| Barcode Scanner | Optional 1D/2D barcode scanner（Honeywell N3680) |
| NFC | 13.56MHz, support 14443A/14443B/15693 |
| Power | |
| Battery | Main 4000mAh, 11.4V + auxiliary 2000mAh, 7.6V, support battery hot replacement |
| Power Input | 19V/3.42A power adapter |
| Battery Life | Main battery life 3.5 hours, Auxiliary battery 0.5 hours(Play 1080P video under LCD 100% backlight) |
| Environment | |
| Drop | 1.2m free fall to the wooden floor |
| IP Rating | IP65 |
| Operating Temp. | -10℃~50℃ |
| Storage Temp. | -30℃~70℃ (excluding batteries) |
| Certificate | |
| Certificate | CE、ROHS、UN38.3、MSDS、IEC62133、IP Rating、FCC |
| Mechanical | |
| Dimension(WxHxD) | 297.2*190.7*23.5mm |
| Optional UHF RFID, thickness increases 9.5mm | |
| Weight | 1.25kg |
| Color | Black |
| Accessory | |
| Accessory | Hand strap, 19V/3.42A power adapter |
| Optional Accessory | Charging Dock, Car Mount, Car Charger, Type-C Data Cable, Capacitive Pen |
