Intel® Core™ i3-6157U CPU 2.40GHz.

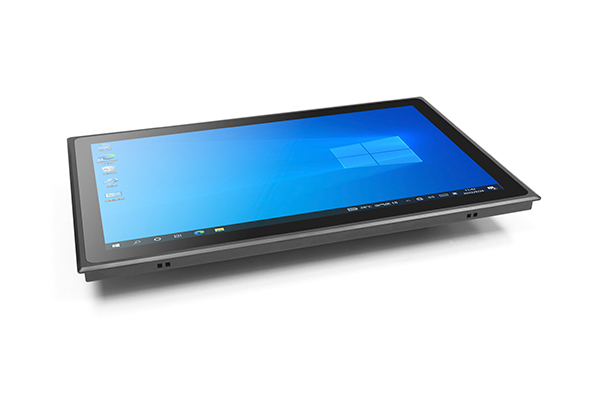

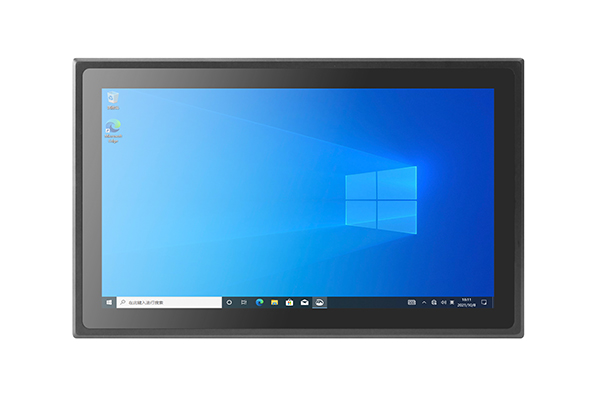

Industrial display, capacitive touch screen.
Memory 8G + hard disk 256G.

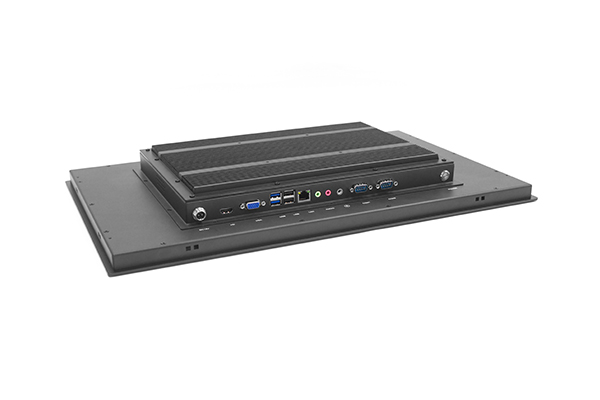

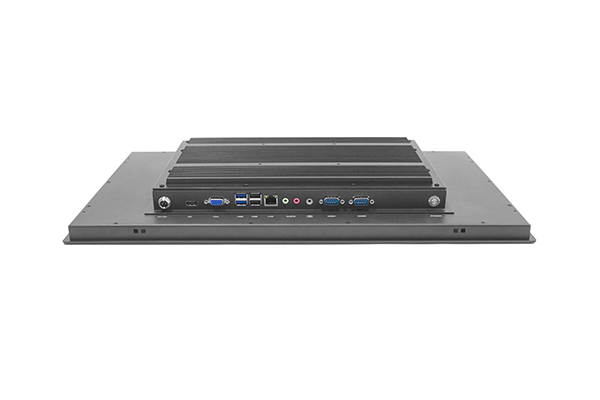

USB2.0*2/USB3.0*2/RS232*2.
HD*1/VGA*1/Gigabit LAN*1/2in1 Audio*1.
Dual-band WIFI+BT.
Fanless design.
| System Hardware | |
| CPU | Intel® Core™ i3-6157U CPU @2.40GHz |
| Memory | 8GB (optional 4GB/16GB) |
| Storage | 256G (optional 64GB/128GB/512GB) |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| Display | |
| LCD Type | 21.5″ LCD |
| Touchscreen | 21.5" capacitive multi-touch screen |
| Contrast Ratio | 3000: 1 |
| Luminance | 250 cd/m2 |
| Max. Resoltuion | 1920*1080 |
| OS | |
| OS | win10 Professional Edition X64 |
| I/O Interface | |
| USB | 2*USB2.0/2*USB3.0 |
| Serial port | 2*RS232 |
| LAN | 1*1000M network interface |
| Aviation Plug | |
| Video | 1*HD/1*VGA |
| GPIO | Optional (occupies 1 COM port) |
| Expansion Slot | WIFI/BT |
| SIM Card | |
| GNSS | |
| Extended Functions | |
| Camera | |
| Fingerprint Recognition | |
| Power | |
| Power Input | 12V DC input (9~36V wide voltage module optional, standard 12/5A power adapter) |
| Environment | |
| Operating Temp. | -10℃～60℃, without air flow |
| Storage Temp. | -20℃～70℃ |
| Humidity | 80% @50℃, non-condensing |
| IP Rating | Front panel IP65 |
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Shock Protection | 10g acceleration, 11ms period |
| Reliability | MTBF≥30000h; MTTR≤0.5h |
| Mechanical | |

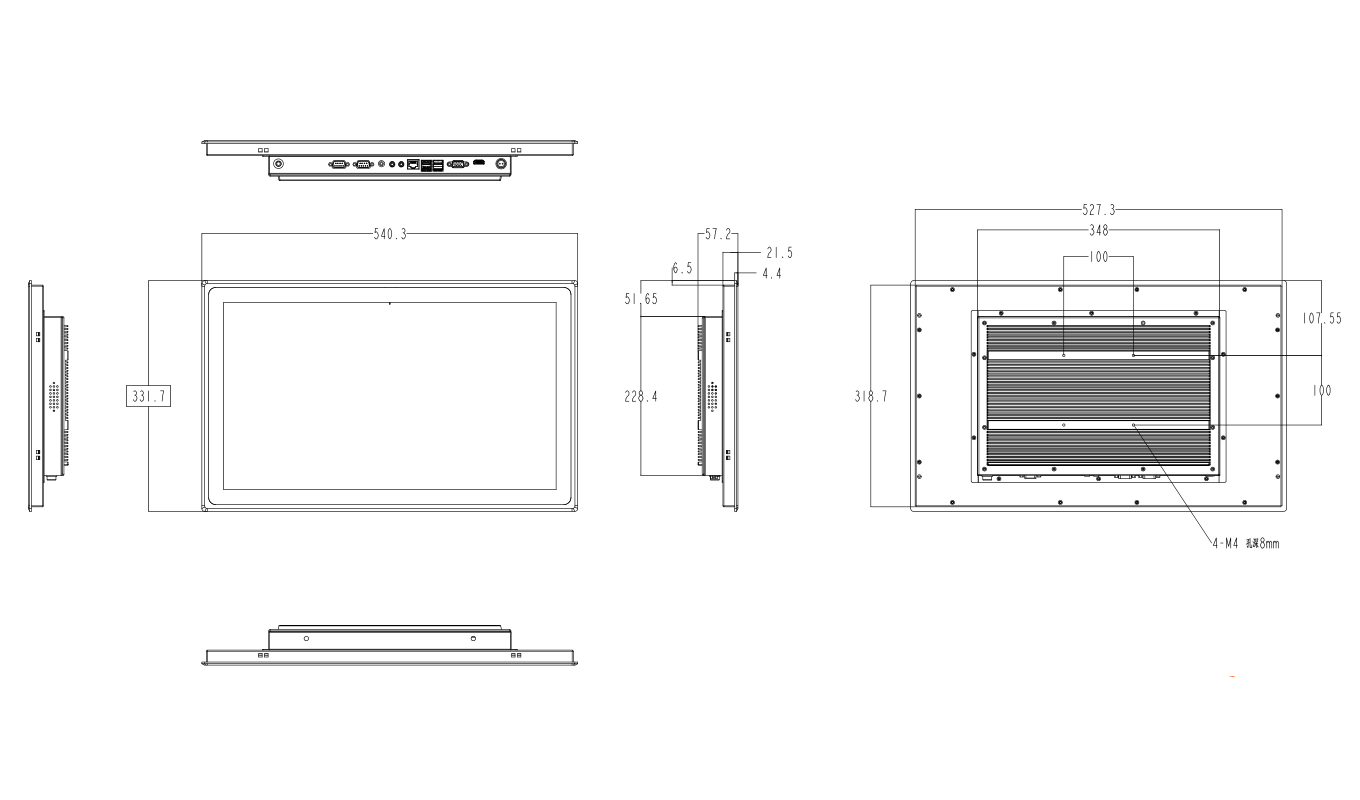

| Dimension (W x H x D) | 540.3*331.7*57.2mm |
| Weight | 6.33kg/6.83kg(N.W./G.W.) |
| Color | Black |

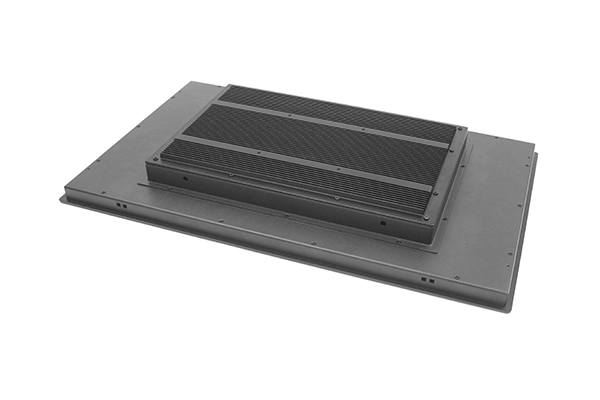

| Material | All metal fanless design |
| Mounting | VESA mounting: 100*100mm Embedded installation 527.3mm*228.4mm |
