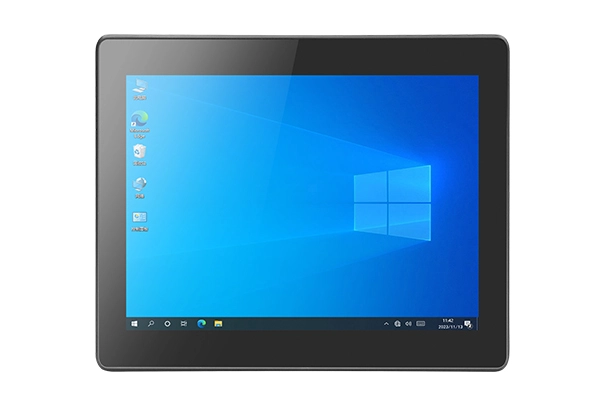

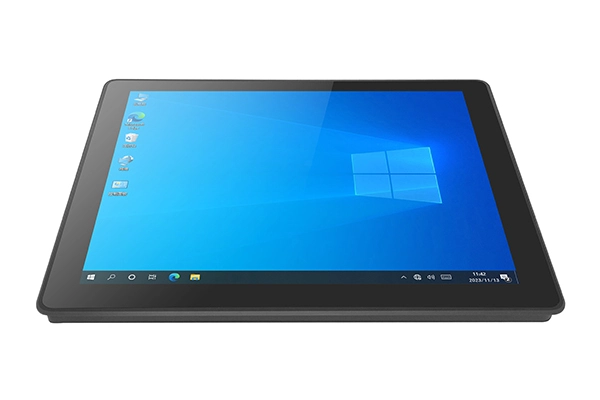

17" Intel® Processor Core/N-series Alder Lake 12th Gen i3/i5/i7 & N97/N100
Industrial display screen, multi point capacitive touch screen
Watchdog 0-255 seconds/grading implemented through system software
OS Windows 10、Ubuntu
2*DDR4 8GB (up to 32GB supported)
4*USB/1*RS232/485/422,DB9,Jumper switching
1*HD/1*VGA/2*RJ45/2*Audio

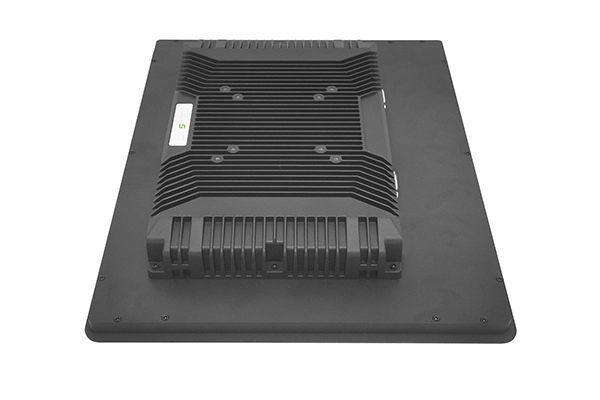

Fanless design
Power Input Standard 12V/5A Phoenix terminal(Optional with electric self starting and 9-36V wide voltage input)
System Hardware | |||
CPU | Intel® Processor Core™ 12th Gen i3/i5/i7 | Memory | DDR4 (optional 8/16/32/64GB,max 16GB for N97) |
Watchdog | 0-255 seconds/grading implemented through system software | Storage | M.2 2280 NVME SSD (optional 128/256/512GB/1T/2T/4T) |
Display | |||
LCD Type | 17″ | Luminance | 300 cd/m2 |
Max. Resolution | 1280*1024 | Contrast Ratio | 1000: 1 |
Touchscreen Type | 17" Multi point capacitive touch screen | ||
OS | |||
OS | Windows 10/11、 Ubuntu | ||

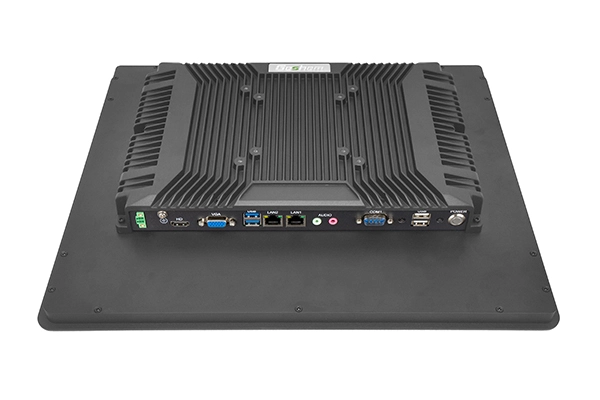

I/O Ports | |||
USB | 2*USB3.2, 2*USB2.0(optional USB3.0) | Audio | 1*Line out, 1*MIC in |
Serial port | 1*RS232 Optional additional 3*RS232/485/422 on TOP (Max 2*RS485 or 1*RS485+1*RS422) | Video | 1*HDMI,1*VGA |
LAN | 2*1Gbe RJ45(Realtek) | Expansion Slot | Optional dual band WIFI/BT, optional 4G/5G communication |
GPIO | Customizable 4in+4out+VCC+GND | SIM Card | Optional with 4G/5G |
Power | |||
Power Input | Standard Phoenix terminal(Optional Auto power on & 9-36V wide voltage input) | ||
Environment | |||
Vibration Protection | 5-17Hz/1.0mm amplitude; 17-200Hz/1.0g acceleration | Operating Temp. | -10℃~60℃, Surface air flow |
Shock Protection | 10g acceleration, 11ms cycle | Storage Temp. | -20℃~70℃ |
Reliability | MTBF ≥ 30000h; MTTR ≤ 0.5h | Humidity | 95% @ 40℃, no condensation |
IP Rating | Front panel IP65 | ||
Mechanical | |||

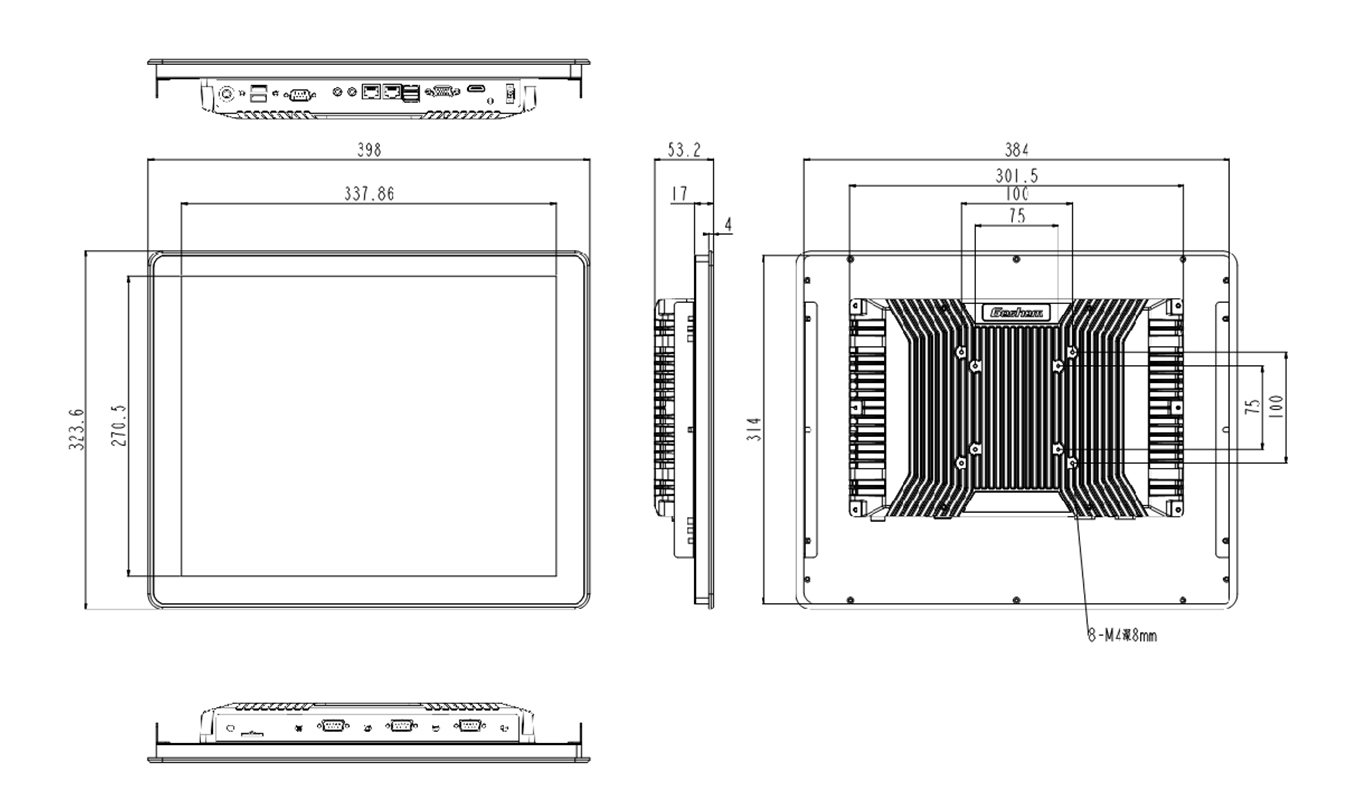

Dimension (WxHxD) | 398mm*323.6mm*53.2mm | Material | All metal fanless design |
Weight | 4.6kg/5.1kg(N.W./G.W.) | Mounting | VESA Installation: 75*75mm/100*100mm Embedded Installation: 384mm*314mm |
Color | Black | ||
Ordering Information: | |||
Serial Number | Model | CPU | Notes |
1 | TY170-GS123B | i3-1215U | The CPU may change based on the market Please consult the sales for the specific CPU before placing the order |
2 | TY170-GS125B | i5-1235U | |
3 | TY170-GS127B | i7-1255U | |
4 | TY170-GSN97B | N97 |
