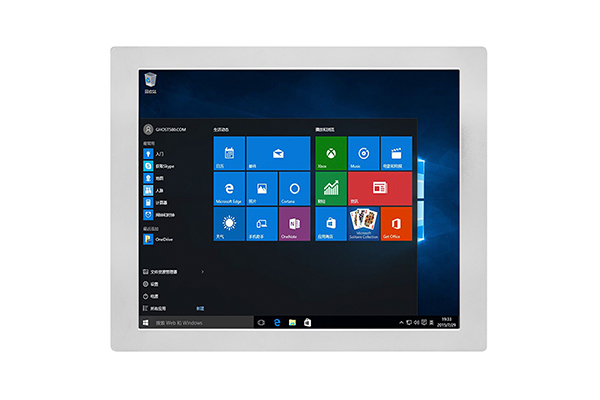

lndustrial Resistive Touch Screen PC
Panel PC Resistive Touchscreen
lndustrial Resistive Touch Screen PC
Panel PC Resistive Touchscreen

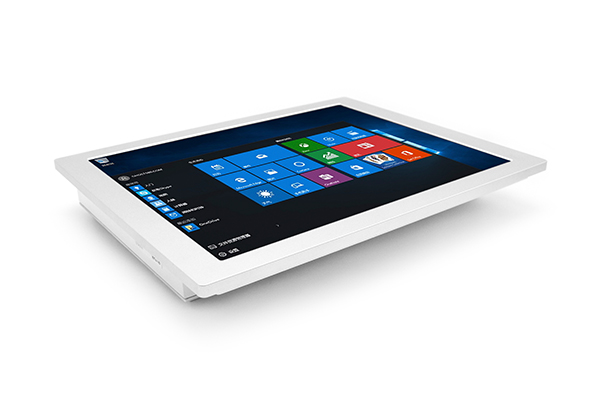

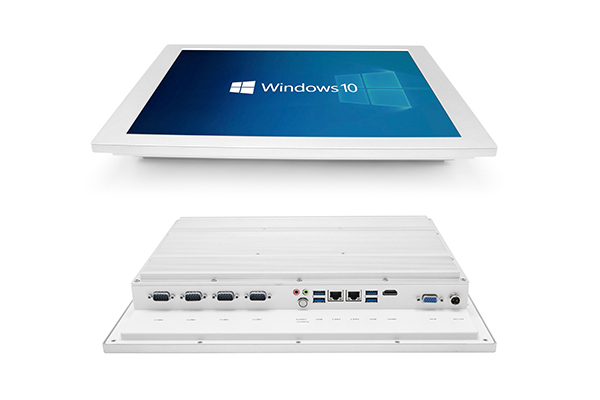

17 Inch J1900 Core I3/I5/I7Resistive Panel PC

PPC-GS17XXT

17 inch 1280*1024 resolusion resistive touch screen panel PC;

1*HDMI + 1*VGA port;

Color: Silver.


Get A Quote
Video Spec Download
Specification
Dimension
Accessories

Specification of 17 inch J1900 Core I3/I5/I7 Resistive Touch Panel PC

System Hardware
CPUSupport intel J1900/J3855/3865/Core I (6/7 th Gen.) series processor
Chipset/
MemoryUp to 8GB
StorageUp to 512GB
Watchdog255 timer levels, setup by software
Display
LCD Type17" TFT-LCD
Max. Resolution1280*1024
Luminance250 cd/m2
Viewing Angle170°(H)*160°(V)
Contrast Ratio1000:1
Backlight Life-Time30000 hr (min.)
Touchscreen
Touchscreen Type5-wire resistive
Light Transmission>78%
Hardness3H
OS
OSWindows 7/10, Linux

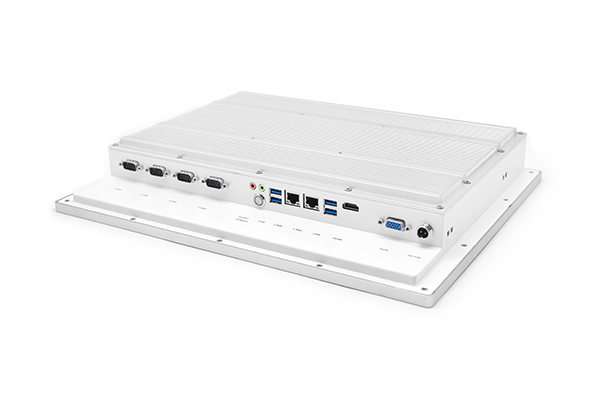

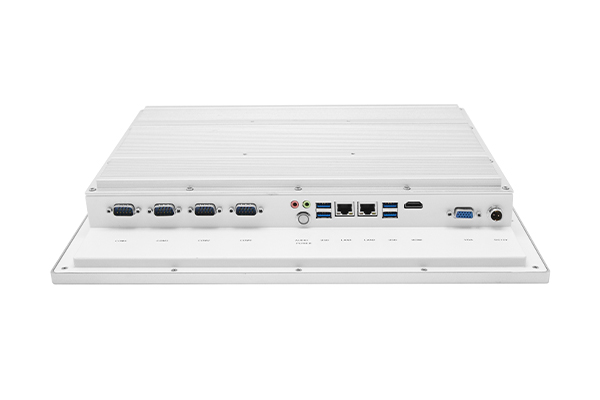

I/O Ports
USB3*USB 2.0 + 1*USB3.0 (Celeron J1900)
4*USB 3.0 (J3855U/3865U/Core i(6/7th Gen))
Serial port4*RS232 (1*RS422/RS485 optional )
LAN2* RJ45 Gigabit Ethernet (Intel I211-AT)
Audio1*Line-out, 1*Mic-in
Video1*HDMI, 1*VGA
GPIO4In/4Out (Occupy 1*COM, optional )
Expansion Slot1*Mini PCIe(Wifi/BT/3G/4G optional)
Power
Power Input9~24V DC Input (9~36V DC optional), 12V/5A power adapter
Power Consumption/
Environment
Operating Temp.-10℃~50℃, with airflow
Storage Temp.-20℃~60℃
Humidity95% @40℃, non-condensing
IP RatingFront panel IP65 (optional)
Shock Protectionacceleration 10G/11ms
Vibration Protection5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration
Certificate
Certificate/
Mechanical
Dimension (W x H x D)400*320*59mm
Weight6.1kg
ColorSilver
MountingVESA mounting: 100*100mm
Panel mounting: 369*248mm
Dimensions

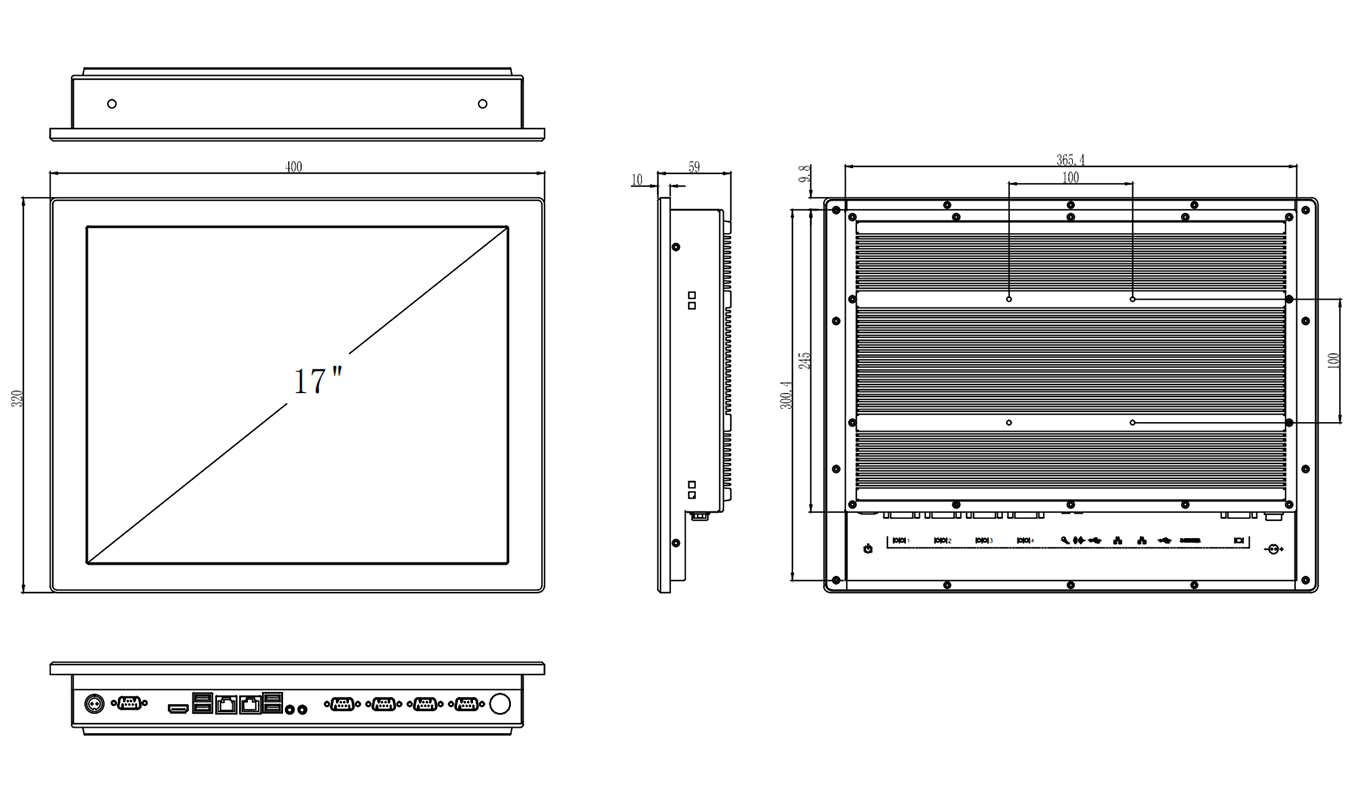

Dimension of 17 inch J1900 Core I3/I5/I7 Resistive Touch Panel PC

Deminsion of 17 inch J1900 Core I3/I5/I7 Resistive Touch Panel PC

Accessories of 17 inch J1900 Core I3/I5/I7 Resistive Touch Panel PC

Packing List

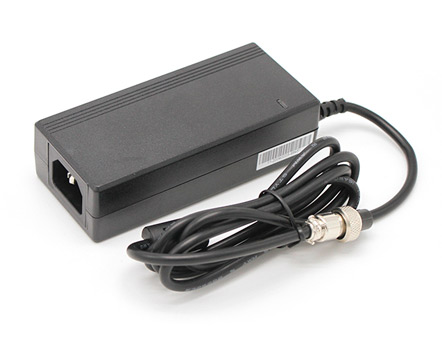

Power Adapter of lndustrial Resistive Touch Screen PC
Power Adapter of lndustrial Resistive Touch Screen PC

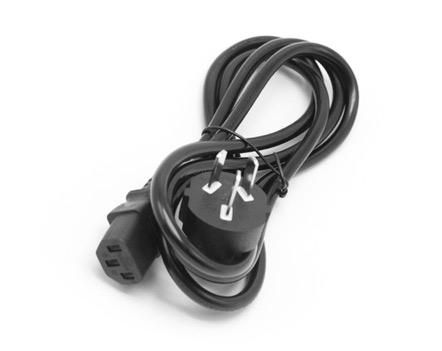

Power Supply of Resistive Touchscreen PC
Power Supply of Resistive Touchscreen PC

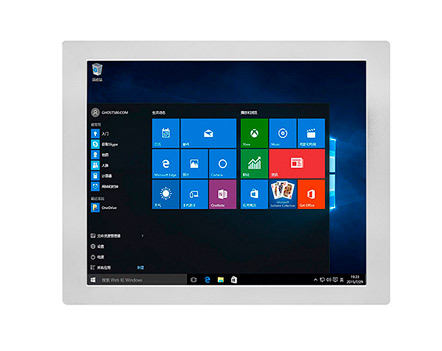

Device of Panel PC Resistive Touchscreen
Device of Panel PC Resistive Touchscreen

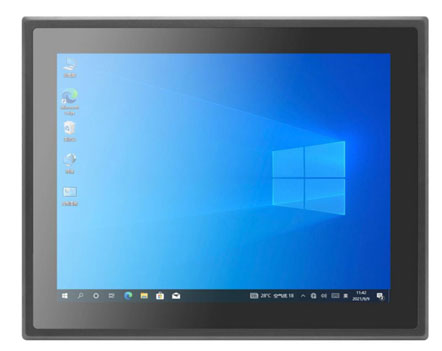

Related Panel PC Products
