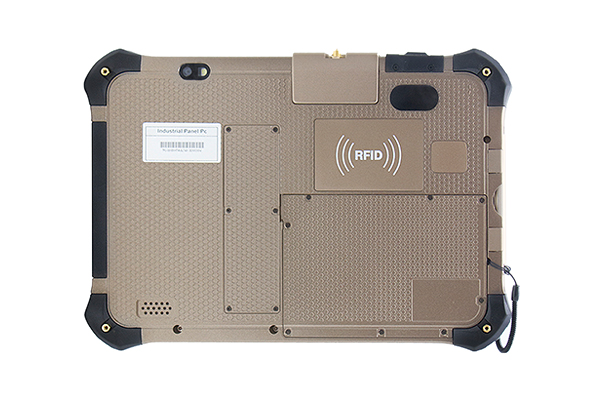

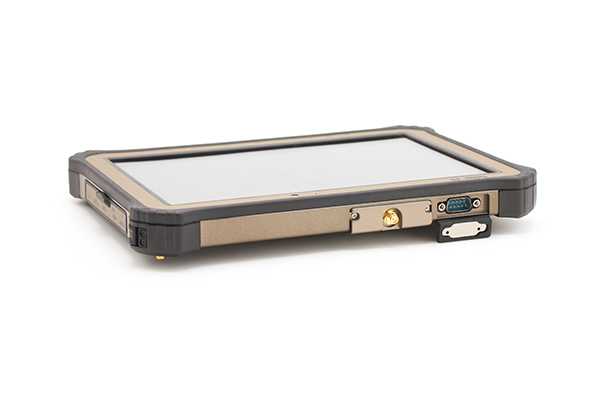

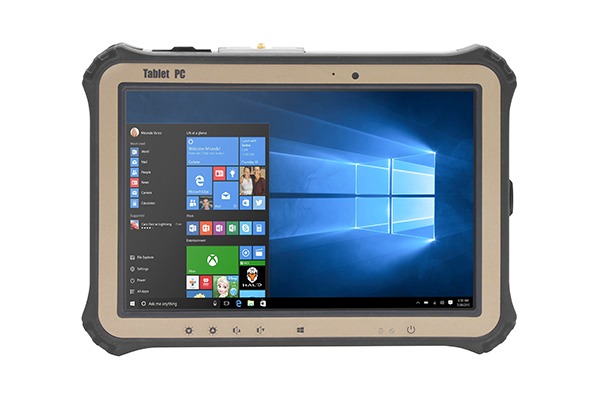

10 Inch Windows Intel N2930 Rugged Tablet

TPC-GS1051HT-V6

Intel® Celeron® N2930 1.83GHz processor;

10.1 inch industrial-grade multi-touch capacitive touchscreen;

Onboard 4GB DDR3 memory.

Get A Quote
Video Spec Download
Benefits
Specification
Dimension
Accessories

Benefits of 10 Inch Windows Intel N2930 Rugged Tablet

  • Intel® Celeron® N2930 1.83GHz processor

  • 10.1 inch industrial-grade multi-touch capacitive touchscreen

  • Onboard 4GB DDR3 memory

  • Rugged magnesium alloy material

  • Fanless design

  • Support WIFI, BT 4.0, optional 3G/4G network

  • Optional GPS/RFID/NFC/QR code scanning

Specification of 10 Inch Windows Intel N2930 Rugged Tablet

System Hardware
CPUIntel® Celeron® N2930 1.83GHz Processor
MemoryOnboard 4GB DDR3 memory
StorageSSD: 64GB, up to 512GB
Hardware MonitoringVoltage and CPU temperature monitoring
Display
Display Screen10.1" TFT LCD
Touch Screen10.1" Multi-touch capacitive touch screen
Brightness350 cd/m2
Contrast800: 1
Resolution1280*800
OS
OSWindows 7/Windows 10/Linux
I/O Interface
CameraFront 200W, rear 500W
AudioBuilt-in speaker, MIC
Video1*Mini HD
USB1*USB 3.0 + 1*USB 2.0
Serial port1*DB9 (expandable 2*RS232 or 1*RS485)
LAN1*Intel® I211AT RJ45 1000M LAN/IEEE 802.11
SIM card1*SIM card slot
TF card1*TF card slot
Expand3G/4G optional/GPS optional/RFID optional/2D scan code optional
WirelessWifi
BT4.0
Power
Power Input5300 mAh Li-ion battery, 12V DC input (standard 12V power adapter)
Accessories
AccessoriesWith capacitive pen (optional hand strap, shoulder strap)
Environment
Vibration Protection5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration
Shock Protectionacceleration 10g/11ms
ReliabilityMTBF≥5000h; MTTR≤0.5h
Operating Temp.-20℃~60℃, with airflow
Storage Temp.-30℃~70℃
Humidity95% @40℃, non-condensing
IP protection levelIP65 optional
Mechanical
Dimension (W x H x D)275 *195 *28mm
Weight1.15kg
1.15kgAluminum-magnesium alloy
ColorCoffee gold

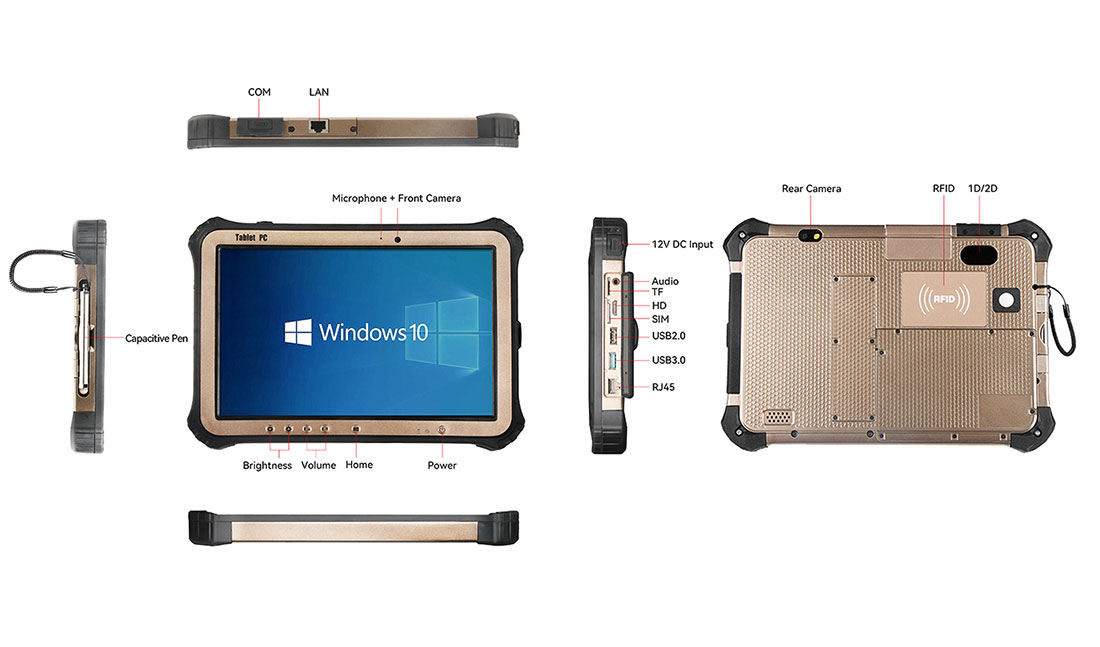

Dimension of 10 Inch Windows Intel N2930 Rugged Tablet

Deminsion of 10 Inch Intel N2930 Rugged Tablet

Accessories of 10 Inch Windows Intel N2930 Rugged Tablet

Packing List

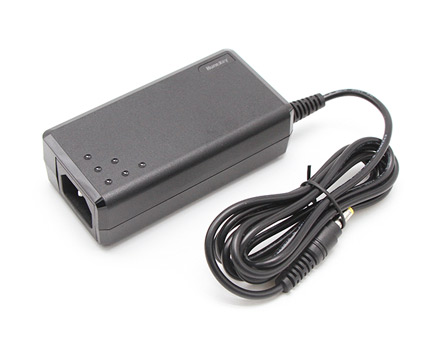

Power Adapter of Ruggedized Tablet Windows 10
Power Adapter of Ruggedized Tablet Windows 10

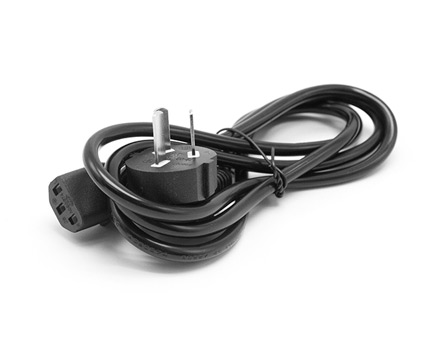

Power Supply of Tablet Rugged Windows 10
Power Supply of Tablet Rugged Windows 10

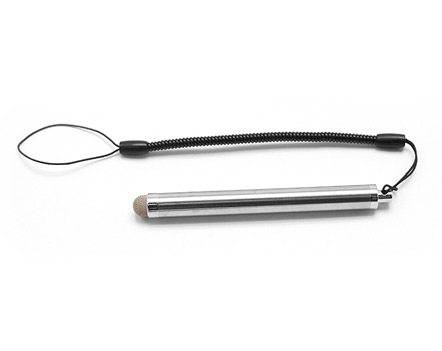

Capacitive Pen of Tablet Windows 10 Rugged
Capacitive Pen of Tablet Windows 10 Rugged

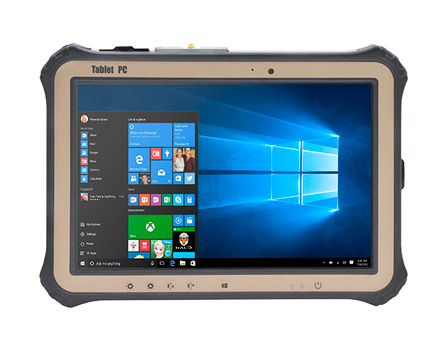

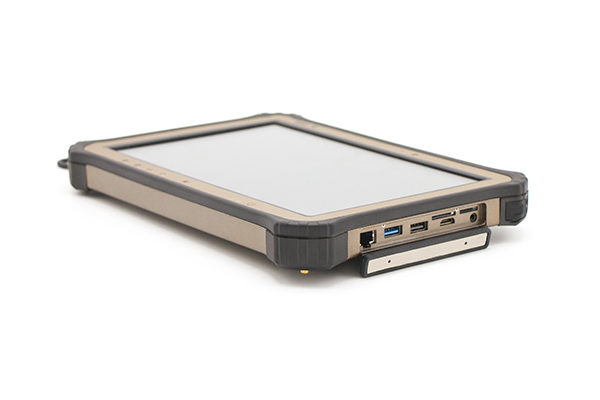

Device of Tough Tablet Windows 10
Device of Tough Tablet Windows 10

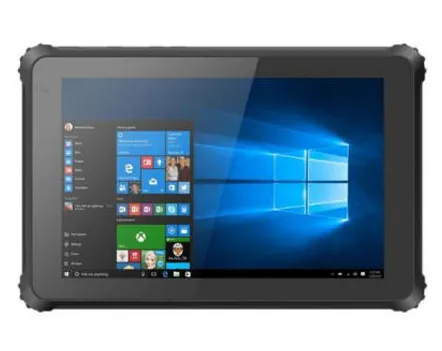

Related Rugged Tablet Products
