CPU options include 8th/11th/12th Gen i3/i5/i7 or N97
DDR4 (N97 supports up to 16GB, 8th/11th Gen supports up to 32GB, 12th Gen supports up to 64GB)
Storage M.2 SATA/NVME SSD (Optional 128GB/256GB/512GB/1T/2T/4T)
■ CPU options include 8th/11th/12th Gen i3/i5/i7 or N97
■ DDR4 (N97 supports up to 16GB, 8th/11th Gen supports up to 32GB, 12th Gen supports up to 64GB)

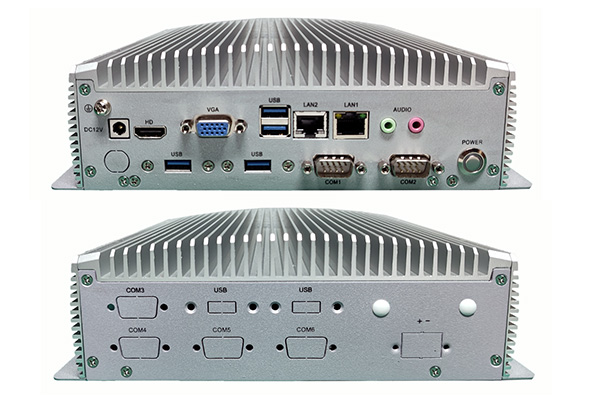

■ Standard : 4*USB 3.0+2*RS232

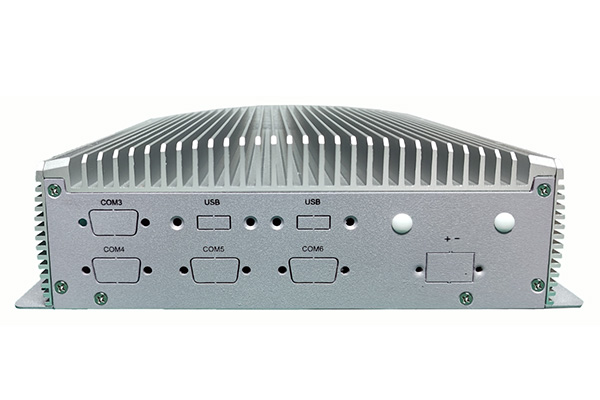

MAX optional: 4*USB 3.0+2*USB 2.0+6*COM (including up to 3*RS485/RS422)

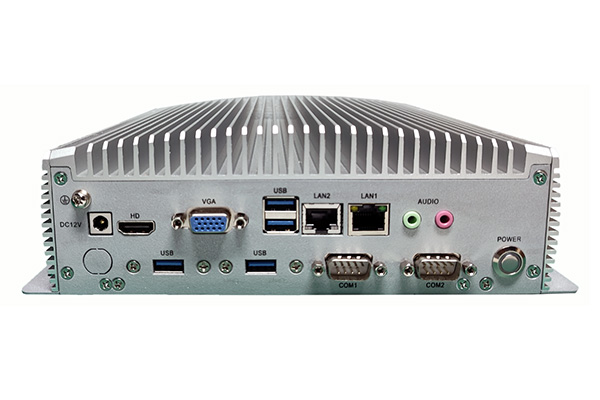

■ 1*HDMI+1*VGA+2*1GbE LAN+2*Audio
■ Fanless design
| System Hardware | |||
| Chipset | Optional 8th/11th/12th Gen i3/i5/i7, N97 | Storage | M.2 SATA/NVME SSD (Optional 128GB/256GB/512GB/1T/2T/4T) |
| Memory | DDR4 (N97 supports up to 16GB, 8th/11th Gen supports up to 32GB, 12th Gen supports up to 64GB) | Watchdog | 0-255 seconds/level implemented through system software |
| OS | |||
| OS | Windows 10/11、Linux | ||
| I/O Ports | |||
| USB | 4*USB3.0 | Optional | Optional dual band WIFI/Bluetooth (with external antenna) |
| Serial Port | MAX Optional 4*USB3.0+2*USB2.0 2*RS232, MAX optional 6 serial ports | Video | 1*HDMI,1*VGA |
| LAN | (up to 3*RS485/RS422) 2*10/100/1000M RJ45 | Audio | Mic in,Line out |
| GPIO | Optional 4in+4out+VCC+GND | ||
| Power | |||
| Power Input | Standard power adapter (optional 9-36V voltage input, optional Phoenix terminal 2pin input) | ||
| Environment | |||
| Vibration Protection | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration | Operating Temp. | -10 ℃~60 ℃, surface air flow |
| Shock Protection | 10g acceleration, 11ms cycle | Storage Temp. | -20 ℃~70 ℃ |
| Reliability | MTBF ≥ 50000h; MTTR ≤ 0.5h | Humidity | 95% @ 40 ℃, no condensation |
| IP Rating | IP52 | ||
| Mechanical | |||
| Dimension (WxHxD) | 235*220*70.5mm | Material | All metal fanless design |
| Weight | 2.5kg/2.9kg (N.W./G.W.) | Mounting | Fixed installation of bracket |
| Color | Silver | ||
| Ordering Information: | |||
| Serial Number | Model | CPU | Notes |
| 1 | PC-GS5083B | i3-8145U | The CPU may change based on the market Please consult the sales for the specific CPU before placing the order |
| 2 | PC-GS5085B | i5-8257U | |
| 3 | PC-GS5087B | i7-8269U/8569U | |
| 4 | PC-GS50113B | i3-1125G4 | |
| 5 | PC-GS50115B | i5-1135G7 | |
| 6 | PC-GS50117B | i7-1195G7 | |
| 7 | PC-GS50123B | i3-1215U | |
| 8 | PC-GS50125B | i5-1235U | |
| 9 | PC-GS5097B | N97 | |
■ Standard : 4*USB 3.0+2*RS232
MAX optional: 4*USB 3.0+2*USB 2.0+6*COM (including up to 3*RS485/RS422)
■ 1*HDMI+1*VGA+2*1GbE LAN+2*Audio
■ Fanless design
■ Watchdog 0-255 seconds/level implemented through
system software
