Geshem TY185-GS11XAH

Name: 18.5 Inch Intel 11th Gen. i3/i5/i7 Economy Capacitive Panel PC
Brand: Shenzhen Geshem Technology Co., Ltd.

TY185-GS11XAH

Intel® Processor Core™ 11th Gen i3/i5/i7

18.5" Industrial display screen, multi point capacitive touch screen

Win10,Win11,Linux

Get A Quote

Spec Download

Features

Benefits

Specification

Deminsion

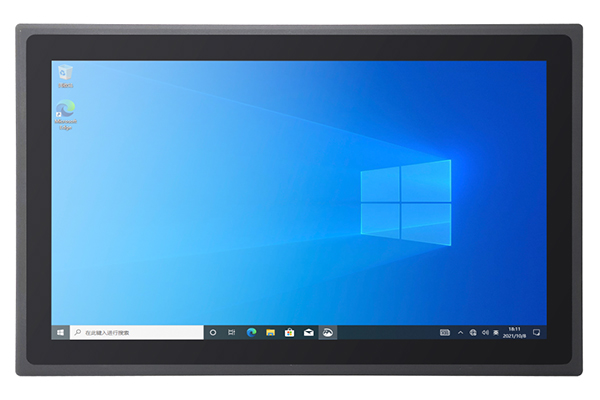

Features of Geshem 18.5 Inch Intel 11th Gen. i3/i5/i7 Economy Capacitive Panel PC

■ Intel® Processor Core™ 11th Gen i3/i5/i7

■ 18.5" Industrial display screen, multi point capacitive touch screen

■ 1*DDR4 8GB (up to 32GB supported)

■ Optional dual band WiFi+BT/4G communication

■ 6*USB3.0/4*RS232(optional RS485/RS422)

■ 1*HDMI+1*VGA/2*LAN/Audio

■ Supports 9-36V wide voltage power input

■ 1*DDR4 8GB (up to 32GB supported)

■ Optional 128GB-1T M.2 2280 SATA SSD

■ Optional dual band WiFi+BT/4G communication

■ 6*USB3.0/4*RS232(optional RS485/RS422)

System Hardware
CPU	Intel® Processor Core™ 11th Gen i3/i5/i7	Memory	1*DDR4 8GB (optional 16/32GB)
Watchdog	0-255 seconds/grading implemented through system software	Storage	Optional 128GB-1T M.2 2280 SATA SSD
Display
LCD Type	18.5″	Luminance	300 cd/m2
Max. Resolution	1366768/19201080	Screen lifespan	50000h
Touch Screen
Touch Screen	18.5 "multi-point capacitive touch screen	hardness	6H
light transmission	＞85%	hardness	6H
OS
OS	Win10,Win11,Linux

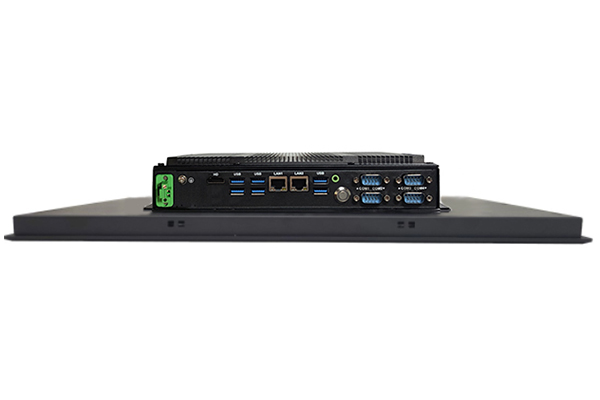

I/O Ports
USB	6*USB3.0	Audio	2 in 1 Audio
Serial port	4RS232(Optional 1-4RS485/422)	Video	1HDMI+1VGA
LAN	2*100/1000M	Expansion Slot	Optional dual band WiFi+BT or 4G
Power
Power Input	Standard Phoenix terminal 2pin input, supports 9-36V wide voltage
Environment
Vibration Protection	5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration	Operating Temp.	-10℃～60℃, Surface air flow
Shock Protection	10g acceleration, 11ms cycle	Storage Temp.	-20℃～70℃
Reliability	MTBF ≥ 30000h; MTTR ≤ 0.5h	Humidity	95% @ 40℃, no condensation
IP Rating	Front panel IP65


Mechanical
Dimension (WxHxD)	470mm292mm65mm	Material	All metal fanless design
Weight	5.8kg/7kg(N.W./G.W.)	Mounting	VESA Installation: 100100mm Embedded Installation: 456mm280mm
Color	Black

Mechanical
Serial Number	Model	CPU	Notes
1	TY185-GS113AH	i3-1115G4	The CPU may change based on the market Please consult the sales for the specific CPU before placing the order




2	TY185-GS115AH	i5-1135G7/1155G7
3	TY185-GS117AH	i7-1165G7
