Intel® Core™ 6th I3/I5/I7 processor.
21.5" industrial-grade display, 10-point capacitive touch screen.
Standard 4GB DDR4 memory, maximum support 16GB.
4*USB, 4*COM, 1*HD, 1*VGA.
1* RJ45 Gigabit network interface.
Support front camera, NFC, 5G communication, dual-band WIFI.
Optional 9-36V DC wide voltage input.
| System Hardware | |
| CPU | Intel® Core™ 6th I3/I5/I7 processor |
| Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
| Memory | 4GB DDR4 RAM, up to 16GB |
| Storage | MSATA: 64GB, up to 512GB |
| Display | |
| LCD Type | 21.5″ LCD |
| Touchscreen Type | capacitive touch screen |
| Max. Resolution | 1920*1080 |
| Luminance | 250 cd/m2 |
| Contrast Ratio | 1000: 1 |
| OS | |
| OS | Windows7/8.1/10, Linux, Ubuntu |
| I/O Ports | |

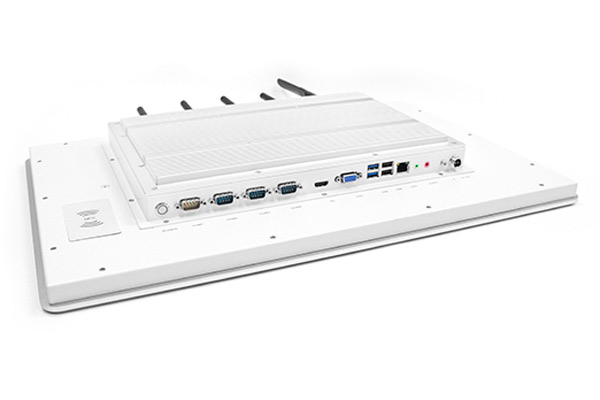

| USB | 2*USB3.0, 2*USB2.0 |
| Serial port | 4*RS232 (optional 1~2*RS485) |
| LAN | 1* RJ45 Gigabit network interface |
| Audio | 1*Line-out+1*Mic-in |
| Video | 1*HD, 1*VGA |
| GPIO | 1*GPIO (4 channels) (optional) |
| Expand | 1*Mini PCIe (dual-band Wifi, with 1 external antenna) |
| Camera | Support front 200W camera |
| NFC | 13.56MHz, support ISO14443A protocol |
| SIM Card | 1* External SIM card holder (support 5G communication, with 4 external antennas) |
| Power | |
| Power Supply | Optional 9~36V wide voltage input, standard 12V/5A power adapter |
