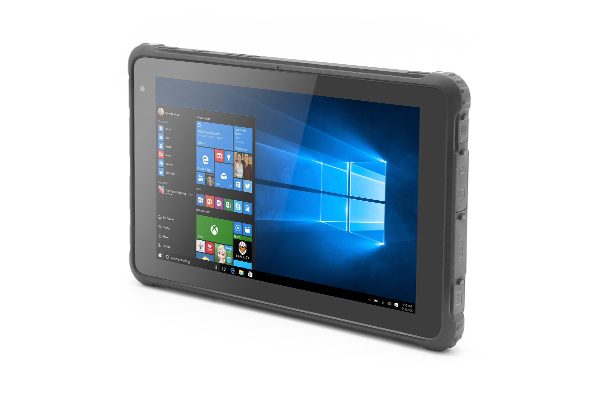

Multi-touch PCAP touchscreen from rugged tablet manufacturers, Optional AG+AF;
RS-232 COM Port + 10/100/1000 GbE RJ45;
Built-in 10000mAh removable battery;
IP67 Compliant, Drop 1.2m;
Windows 10.

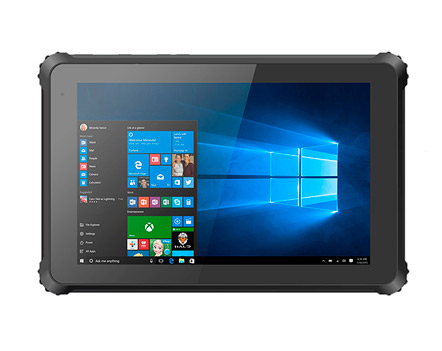

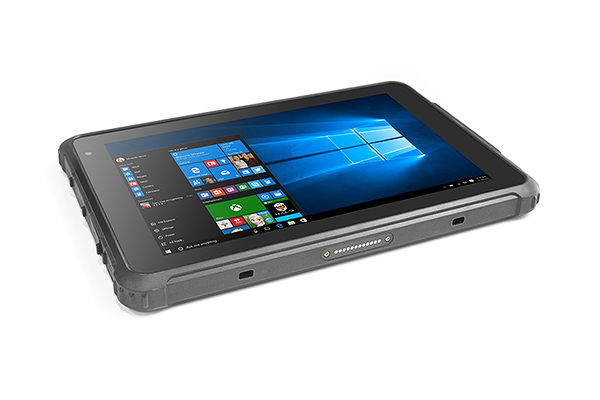

10.1" WXGA(1280x800)450/1000 nits TFT LCD
Intel® Cherry Trail Quad-core Z8350
WiFi 802.11a/b/g/n/ac, Bluetooth 4.2, LTE, GPS+GLonass
2MP Front and 5MP Rear Camera
2D Barcode Scanner & NFC/RFID/ID card
Mulit-touch PCAP touchscreen, Optional AG+AF
RS-232 COM Port + 10/100/1000 GbE RJ45
Built-in 10000mAh removable battery for tablet industrial windows 10
IP67 Compliant, Drop 1.2m
Windows 10
| System Hardware | |
| CPU | Intel® Cherry Trail Quad-core Z8350 1.44GHZ~1.92GHz |
| Memory | 4GB |
| Storage | 64GB |
| MIC | Dual MIC |
| Earpiece | Waterproof earpiece |
| Button | The power button, Volume +/-, 1*Customize function key, 1*Barcode scanner shortcut key |
| LED Indicator | Charging indicator |
| Sensor | Gsensor |
| Camera | 13MP rear camera with autofocus |
| Speaker | Dual speaker, 1.2W/8Ω |
| Display | |
| LCD Type | 10.1" TFT-LCD |
| Touchscreen | 5-Points projected capacitive touchscreen, up to 10-points, Optional AG+AF |
| Max. Resolution | 1280*800, Optional 1920*1200 800cd/㎡ |
| Luminance | 450 cd/m2, Optional 1000 cd/m2 (1280*800) |
| Cover Glass | Corning Gorilla Glass III, hardness 7H, light transmittance 85% |
| OS | |
| OS | Windows 10 |

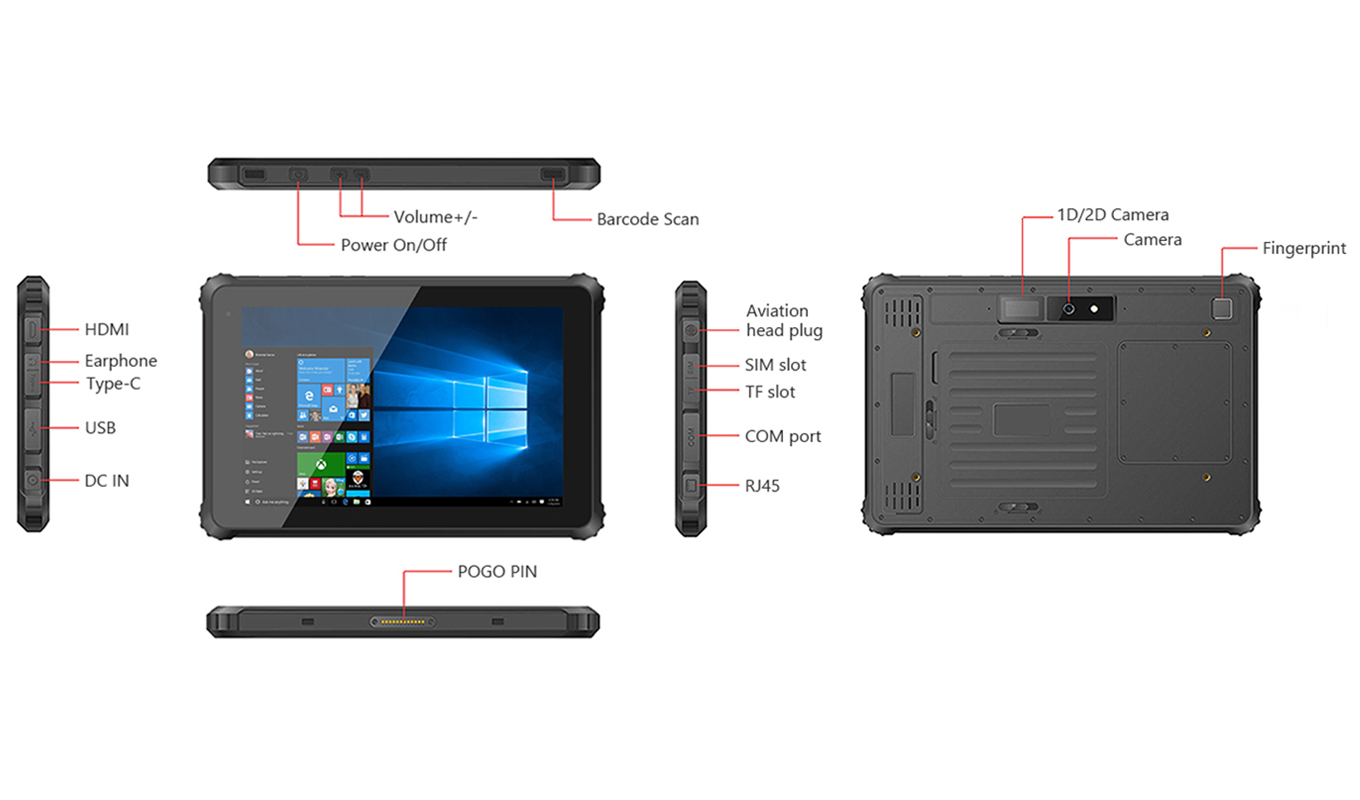

| I/O Interface | |
| POGO PIN | 1*POGO PIN (USB+Charging) |
| DC Jack | 1*DC Jack |
| USB | 1*USB Type C (USB OTG+Charging), 1*USB 2.0, TYPE A |
| LAN | 1*RJ45 |
| COM Port | 1*RS-232 |
| Video | 1*mini HD |
| Audio | 3.5mm Headphone Jack |
| SIM Card Slot | 1*Micro SIM Card Slot |
| TF Card Slot | 1*TF Card Slot, up to 256GB |
| Aviation Plug | Expansion 1*CAN |
| Communication | |
| WWAN | EC-25EC (Europe/Middle East/Africa/Korea/Thailand)/LTE FDD: B1/B3/B7/B8/B20/B28A/WCDMA: B1/B8/GSM: B3/B8 |
| WIFI | 802.11a/b/g/n/ac, 2.4G+5.8G Dual-band WIFI |
| Bluetooth | Bluetooth 4.2 (BLE) class1, Transmission range: 10m |
| GNSS | U-Blox GPS+GLonass |
| Extended Functions | |
| NFC | 13.56MHz, support 14443A/14443B/15693 |
| RFID | Optional RFID/HF RFID/UHF RFID |
| Barcode Scanner | Optional 1D/2D barcode scanner, 2 choose 1 |
| ID Card Recognition | Optional ID card recognition module |
| Power | |
| Power Input | 5V DC Input, 5V/3A power adapter |

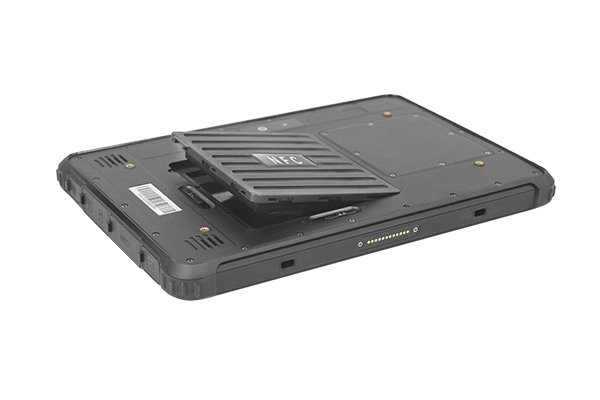

| Battery | 10000mAh, removable 3.8V Li-Ion battery |
| Battery Life | 8 hours (Play 1080P video under LCD 50% backlight) |
| Environment | |
| Drop | 1.2m free fall to the wooden floor |
| IP Rating | IP67 |
| Operating Temp. | -10℃～50℃ |
| Storage Temp. | -30℃～70℃ |
| Certificate | |
| Certificate | CE, RHOS, UN38.3, MSDS, IEC62133 |
| Mechanical | |
| Dimension (W x H x D) | 274*181*23mm, Optional UHF RFID module, the thickness increases 9.5mm |
| Weight | 1.25kg |
| Color | Black |
| Accessory | |

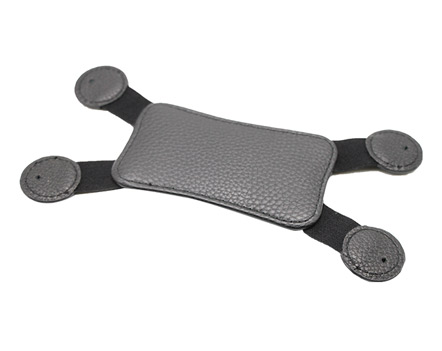

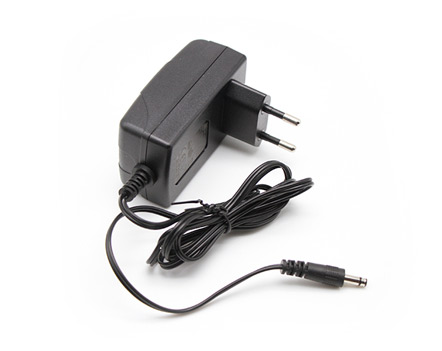

| Accessory | Hand strap, 5V/3A power adapter |

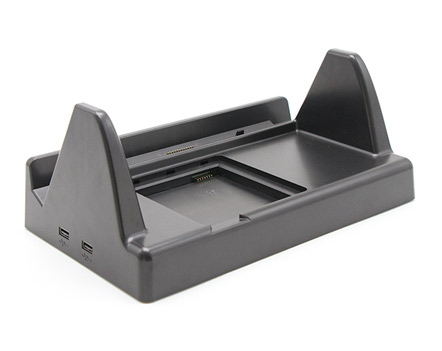

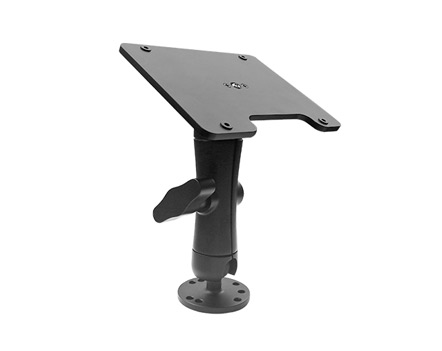

| Optional Accessory | Docking, Vehicle bracket, Vehicle charger, Passive touch pen, Type-C data cable, Type-C OTG cable |
