10'' WXGA (1920*1200) 750 nits IPS LCD
RK3588, Octa-core, 4*Cortex-A76+4*Cortex-A55Large and small nuclei, dominant frequency 2.4GHz, Small core dominant frequency 1.8GHz
WIFI6, Bluetooth 5.0
Front 5MP fixed focus camera, rear 8MP autofocus camera
Optional 1D/2D barcode scanning, RFID
capacitive touch screen
IP65 protection level of the whole machine, 1.2m drop protection
Linux ( Ubuntu, Debian )
| System Hardware | |
| CPU | RK3588，Octa-core，4*Cortex-A76+4*Cortex-A55Large and small nuclei，dominant frequency 2.4GHz，Small core dominant frequency 1.8GHz |
| Memory | 4GB(optional 8GB） |
| Storage | 64GB(optional 32GB/16GB)EMMC；1*M.2 NVME SSD |
| Camera | Front-facing 5MP fixed-focus camera; rear 8MP autofocus camera |
| Speaker | Dual speakers, 1.2W/8Ω aluminum film, IP67 waterproof |
| MIC | Dual microphone |
| Button | Power key, volume +/-, Home key, custom key, function key |
| LED Indicator | charging indicator |
| Sensor | Gsensor |
| Display | |
| LCD Type | 10.1" IPS LCD |
| Max. Resoltuion | 1920*1200 |
| Luminance | 750cd/m2 |
| Touchscreen | 5-point capacitive touch screen |
| Cover Glass | Corning Gorilla Glass III, hardness 7H, light transmittance 90% |
| OS | |
| OS | Linux ( Ubuntu、Debian ) |

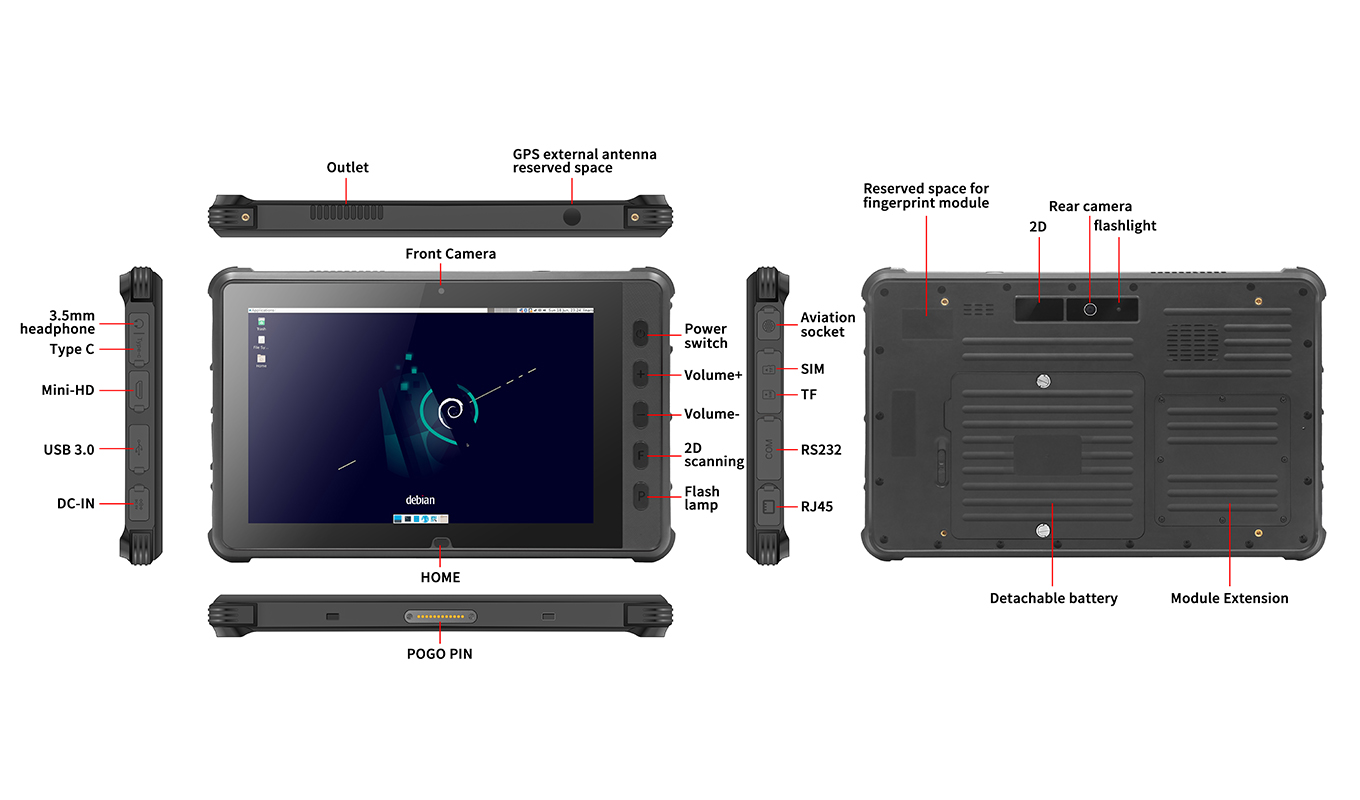

| I/O Ports | |
| POGO PIN | 1*POGO PIN |
| USB | 1*USB Type C 1*USB 3.0, Type A |
| Video | 1*mini HD |
| Audio | 3.5mm headphone jack |
| DC Jack | 1*DC Jack |
| LAN | 1*RJ45 |
| COM Port | 1*RS232 |
| SIM Card Slot | 1*Micro SIM card holder |
| TF Card Slot | 1*TF card holder |
| Aviation Plug | 1-way CAN、1-way COM/1-way USB interface can be customized |
| Communication | |
| 4G(Optional) | GSM： B2/B3/B5/B8 WCDMA： B1/B2/B5/B8 TD-SCDMA：B38/B39/B40/B41 CDMA2000 LTE-FDD： B1/B2/B3/B4/B5/B7/B8 LTE-TDD： B38/B39/B40/B41 |
| WIFI | WIFI6 |
| Bluetooth | Bluetooth 5.0 |
| GNSS | GPS+BeiDou |
| Extended Functions | |
| NFC/RFID | Optional NFC/HF-RFID/UHF-RFID，One out of three |
| Power | |
| Power Input | 19V/3.42A power adapter |
| Environment | |
| Drop | 1.2m free fall to the wooden floor |
| IP Rating | IP65 |
| Operating Temp. | -10℃~50℃ |
| Storage Temp. | -30℃~70℃ (excluding batteries) |
| Certificate | |
| Certificate | CE、ROHS、UN38.3、MSDS、IEC62133、IP Rating |
| Mechanical | |
| Dimension(WxHxD) | 297.2*190.7*23.5mm |
| Optional UHF RFID, thickness increases 9.5mm | |
| Weight | 1.25kg |
| Color | Black |
| Accessory | |
| Accessory | Hand strap, 19V/3.42A power adapter |
| Optional Accessory | Charging Dock, Car Mount, Car Charger, Type-C Data Cable, Capacitive Pen |
