Adopt 11th Gen. Intel® Core™ I5-1135G7/i7-1165G7/i7-1185G7 processor
Support Win10, Win11 and other operating systems
14 inch high-definition capacitive touch screen, resolution 1920 * 1080, brightness 1000Nits, sun readable display
DDR4 8G+256G SSD, maximum 64G+16TB
6900mAh lithium battery
Front 2 megapixel camera
IP65 certification
Adopt 11th Gen. Intel® Core™ I5-1135G7/i7-1165G7/i7-1185G7 processor
Support Win10, Win11 and other operating systems
14 inch high-definition capacitive vehicle mount touch PC screen, resolution 1920 * 1080, brightness 1000Nits, sun readable display
DDR4 8G+256G SSD, maximum 64G+16TB
6900mAh lithium battery
Front 2 megapixel camera
IP65 certification
| Model | RPC-GS14-1165L | ||
| Features | ■ Adopt 11th Gen. Intel® Core™ I5-1135G7/i7-1165G7/i7-1185G7 processor ■ Support Win10, Win11 and other operating systems ■ 14 inch high-definition capacitive touch screen, resolution 1920 * 1080, brightness 1000Nits, sun readable display ■ DDR4 8G+256G SSD, maximum 64G+16TB ■ 6900mAh lithium battery ■ Front 2 megapixel camera ■ IP65 certification | ||
| Specifications | |||
| System Hardware | |||
| CPU | Intel® Core™ I5-1135G7 ; Intel® Core™ I7-1165G7 ; Intel® Core™ I7-1185G7; | Battery | 10.8V, 6900mAh lithium battery, 16h Optional second lithium battery 4700mAh, 9 hours |

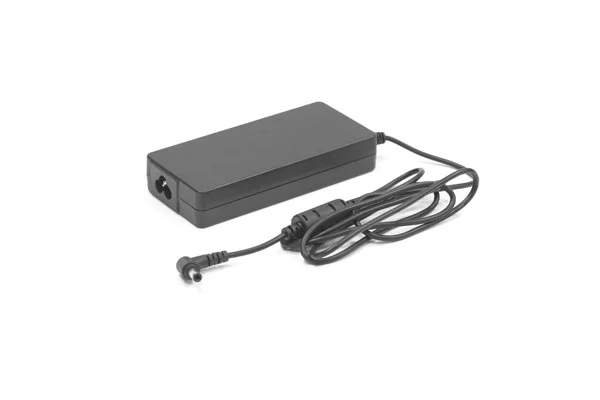

| Memory | DDR4 8G（MAX TO 64GB） | Power Supply | 19V/4.74A 90W power adapter |
| Storage | 256G solid state disk (maximum 16TB), 1*microSD card | LCD | 14" LCD;1920*1080; 1000cd/m2, readable in sunlight |
| OS | |||
| OS | Windows 10, Windows 11, etc | ||
| I/O Ports | |||
| USB | 1 * USB 3.2 Gen2 (Type C) (DP supported) 1 * USB 3.2 Gen2 (Type A) 1 * USB 3.2 Gen1 (Type A) 1 * USB 2.0 (Type A) | POGO Pin | 1 * Base connector (41 pin Pogo) |
| Serial Port | 2*RS232 (one of them supports RS-422/RS-485) | Display | 1*HD (Type A), 1 * VGA |
| SIM card slot | 1 * Micro SIM card holder | Card reader | 1 * Smart card reader |
| LAN | Integrated 2*10/100/1000 Ethernet | Communiction Port | Intel® Wi-Fi 6 AX201（802.11 ax）; Bluetooth® V5.2; 4G LTE/GPS optional; |
| Expansion Slots (Only one option) | Optional DVD super Multi; Optional second battery; Optional second and third storage (SATA SSD) 1 optional body | ExpressCard | 1*ExpressCard 54 |
| Environment | |||
| Operating Temp. | -20 ℃～ 60 ℃ (optional SSD power supply) | Storage Temp. | -51℃～71℃ |
| IP Protection Class | IP65 | Drop | 1.8m falling 26 sides |
| Mechanical | |||
| Dimension (LxWxH) | 368*319*62mm | Color | Black |
| Weight | 3.6kg | Certiicates | MIL-STD 810H certification, MIL-STD 461G certification, ANSI/ISA 12.12.01-2000, Class I, 2 partitions, IP65 |
